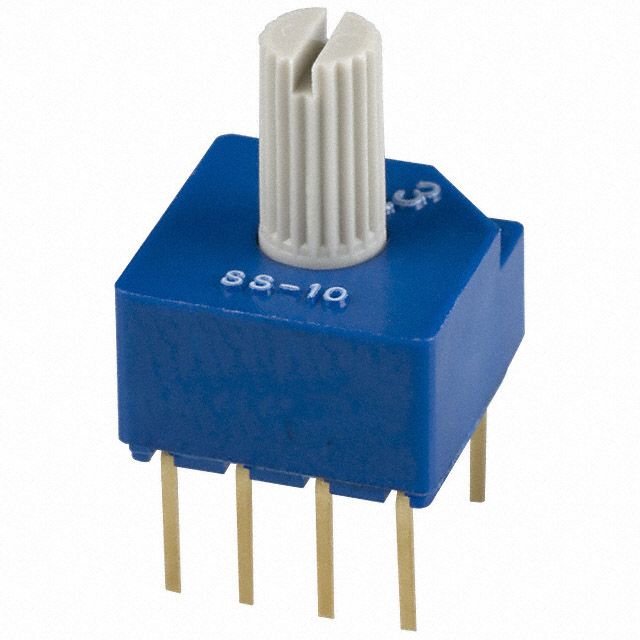

This rotary DIP switch features a polybutylene body with copper alloy contacts plated with gold, rated for 500 cycles of electrical life. It is designed for through hole mounting and is compatible with lead-free applications. The switch operates within a temperature range of -25°C to 70°C and is washable. The SS-10 series is a line of rotary DIP switches from Nidec, offering a range of configurations and specifications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nidec SS-10-23NP-LE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | Rotary |
| Body Material | PBT, Polybutylene |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Electrical Life | 500Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Positions | 3 |
| Orientation | Vertical |
| Packaging | Bulk |
| Series | SS-10 |
| Termination | PC Pin |
| Throw Configuration | DP3T |
| DC Rated Voltage | 5V |
| Washable | Yes |
| RoHS | Compliant |
