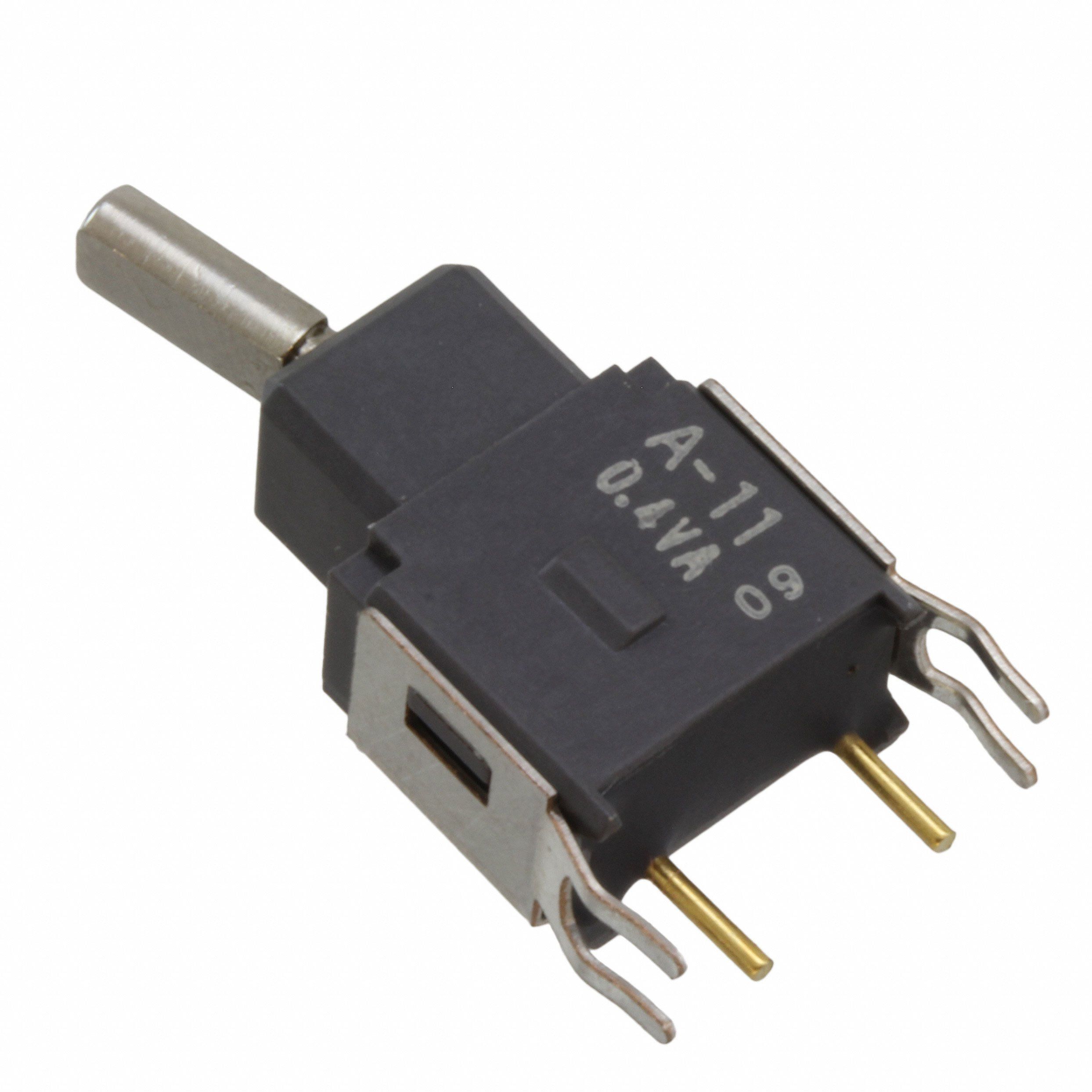

This SPST toggle switch features a brass actuator with gold contact plating and a maximum operating temperature range of -30°C to 85°C. It has a voltage rating of 28V AC and a DC rated voltage of 28V. The switch is designed for 50000 cycles of electrical life and is available in a through-hole mount configuration. It is RoHS compliant and packaged in bulk.
Checking distributor stock and pricing after the page loads.
NKK Switches A11HB technical specifications.
| Actuator Length | 6.3mm |
| Actuator Material | Brass |
| Contact Plating | Gold |
| Electrical Life | 50000Cycles |
| Illumination Type | Non-Illuminated |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | A |
| Switch Function | On-Off |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
| RoHS | Compliant |
No datasheet is available for this part.
