NKK Switches
A1RAH
Switch Toggle (ON) None ON SPDT Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches A1RAH technical specifications.
General
Actuator Length
10mm
Actuator Material
Brass
Actuator Type
Standard Round
Electrical Life
50000Cycles
Illumination Type
Non-Illuminated, Illuminated
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Mount
Through Hole
Package Quantity
1
Packaging
Bulk
Series
A
Switch Function
On-Mom
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Not Compliant
Datasheet
NKK Switches A1RAH Datasheet
Download the complete datasheet for NKK Switches A1RAH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

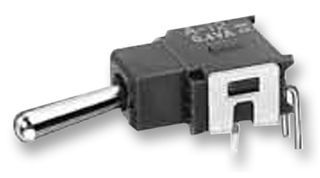

Product Images
