NKK SWITCHES

AS22AP

Datasheet

DPDT Slide Switch, On-On, 28V, 0.4VA, Gold, PC Pin, Through Hole

NKK Switches

AS22AP

Name: AS22AP NKK Switches
Brand: NKK Switches
SKU: AS22AP

DPDT Slide Switch, On-On, 28V, 0.4VA, Gold, PC Pin, Through Hole

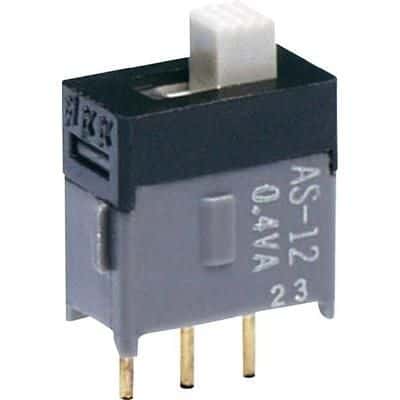

Subminiature slide switch featuring DPDT circuitry with non-shorting contact timing and On-On function. Rated for 0.4VA at 28V AC/DC, this switch offers gold-plated phosphor bronze contacts and a standard actuator with a 2.50mm length. Mounting is via through-hole PC pins, with epoxy-sealed terminals for enhanced durability. Electrical and mechanical life expectancy is 50,000 cycles.

MountingThrough Hole, PCB

Quick Jump:

Technical Specifications

NKK Switches AS22AP technical specifications.

General

Actuator Length	2.5mm
Actuator Material	Nylon, Glass, Polyamide, Glass fibre
Actuator Type	Standard
Contact Material	Bronze, Brass, Gold
Contact Plating	Gold
Depth	9.2mm
Electrical Life	50000Cycles
Illumination Type	Non-Illuminated
Lead Free	Lead Free
Length	9.8mm
Max Current Rating	100mA
Max Operating Temperature	85°C
Mechanical Life	50000Cycles
Min Operating Temperature	-30°C
Max Voltage Rating (AC)	28V
Max Voltage Rating (DC)	28V
Mount	Through Hole, PCB
Operating Force	260gf
Package Quantity	1
Packaging	Tray
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	AS
Switch Function	On-On
Switch Travel	2.5mm
Switching Voltage	28V
Termination	PC Pins
Throw Configuration	DPDT
Voltage Rating (AC)	28V
DC Rated Voltage	28V
