SPDT pushbutton switch with a vertical, right-angle mounting orientation. Features a round, polyacetal button actuator and gold-plated bronze contacts. Rated for 28V AC/DC and 100mA, with an electrical and mechanical life of 50,000 cycles. Operates within a temperature range of -30°C to 85°C. Terminated with PC pins for through-hole mounting.
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches BB15AH-FA technical specifications.
General
| Actuator Material | Polyacetal |
| Actuator Type | Round, Button |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 20.5mm |
| Electrical Life | 50000Cycles |
| Lead Free | Lead Free |
| Length | 8.8mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Mechanical Life | 50000Cycles |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 28V |
| Max Voltage Rating (DC) | 28V |
| Mount | Through Hole |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | BB |
| Switch Function | On-Mom |
| Termination | PC Pins |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches BB15AH-FA Datasheet
Download the complete datasheet for NKK Switches BB15AH-FA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

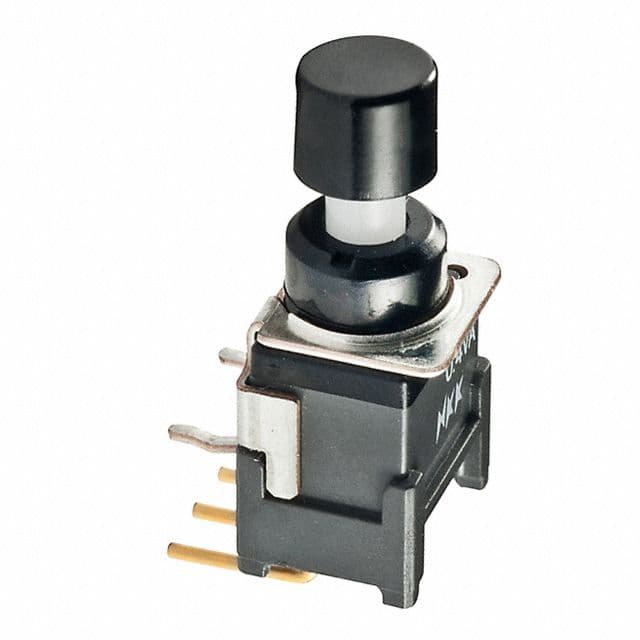

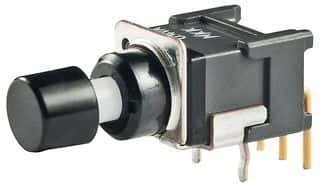

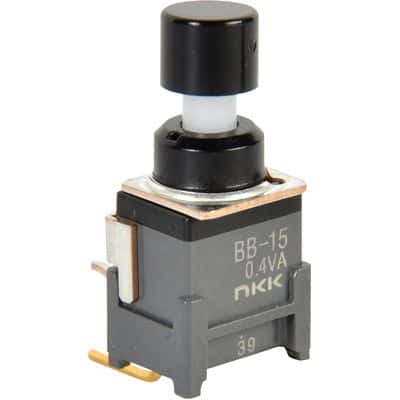

Product Images
