NKK Switches
BB15AP-FC
Switch Push Button ON (ON) SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches BB15AP-FC technical specifications.
General
| Actuator Type | Round, Button |
| Contact Plating | Gold |
| Electrical Life | 50000Cycles |
| Flammability Rating | UL94 V-0 |
| Max Operating Temperature | 85°C |
| Mechanical Life | 50000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | BB |
| Switch Function | On-Mom |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches BB15AP-FC Datasheet
Download the complete datasheet for NKK Switches BB15AP-FC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

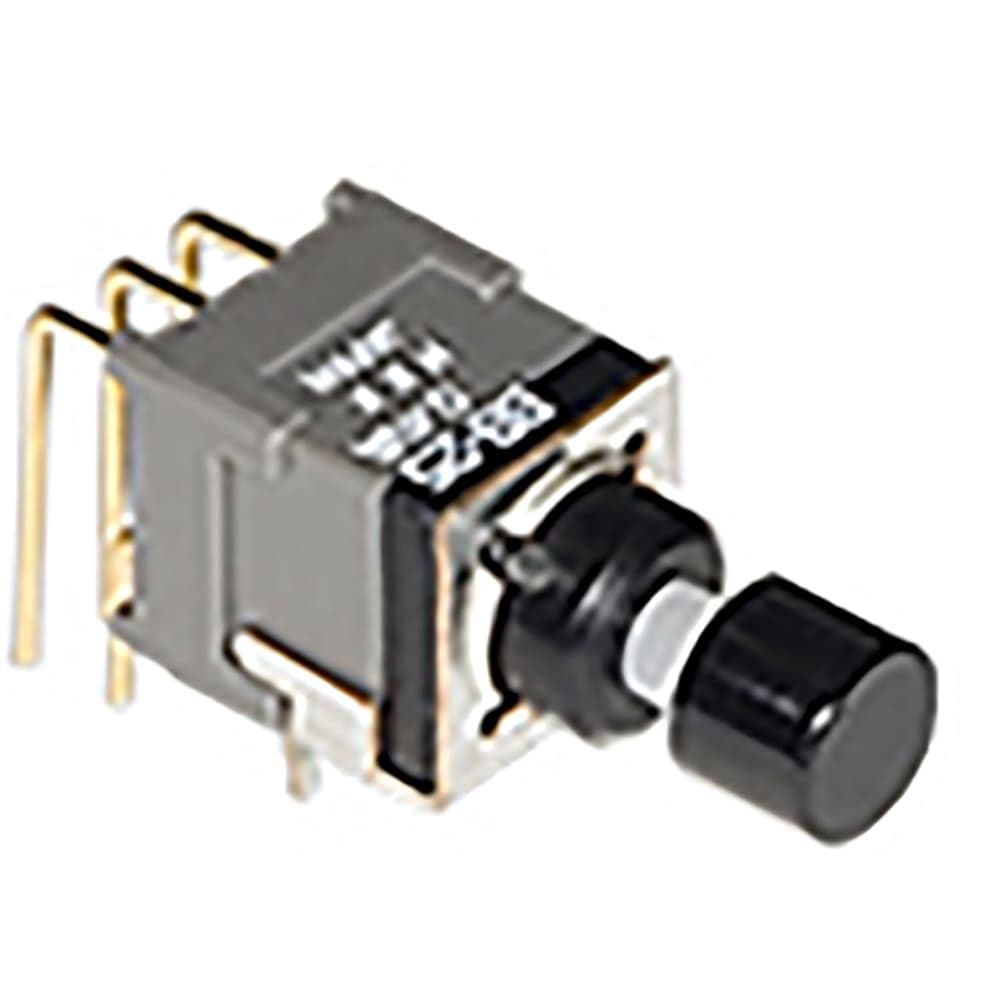

Product Images
