DPDT illuminated pushbutton switch with ON-ON function and PC pin termination for through-hole mounting. Features a round plunger actuator made of polyacetal with a gold-plated bronze contact material. Rated for 0.1A at 28VAC/28VDC, with an electrical and mechanical life of 25,000 cycles. Operates within a temperature range of -30°C to 85°C and meets UL94 V-0 flammability rating.
MountingThrough Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the NKK Switches BB26AP-FB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
NKK Switches BB26AP-FB technical specifications.
General
| Actuator Material | Polyacetal |
| Actuator Type | Round, Button |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 8.8mm |
| Electrical Life | 25000Cycles |
| Flammability Rating | UL94 V-0 |
| Length | 8.8mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 28V |
| Max Voltage Rating (DC) | 28V |
| Mechanical Life | 25000Cycles |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | BB |
| Switch Function | On-On |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches BB26AP-FB Datasheet
Download the complete datasheet for NKK Switches BB26AP-FB to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

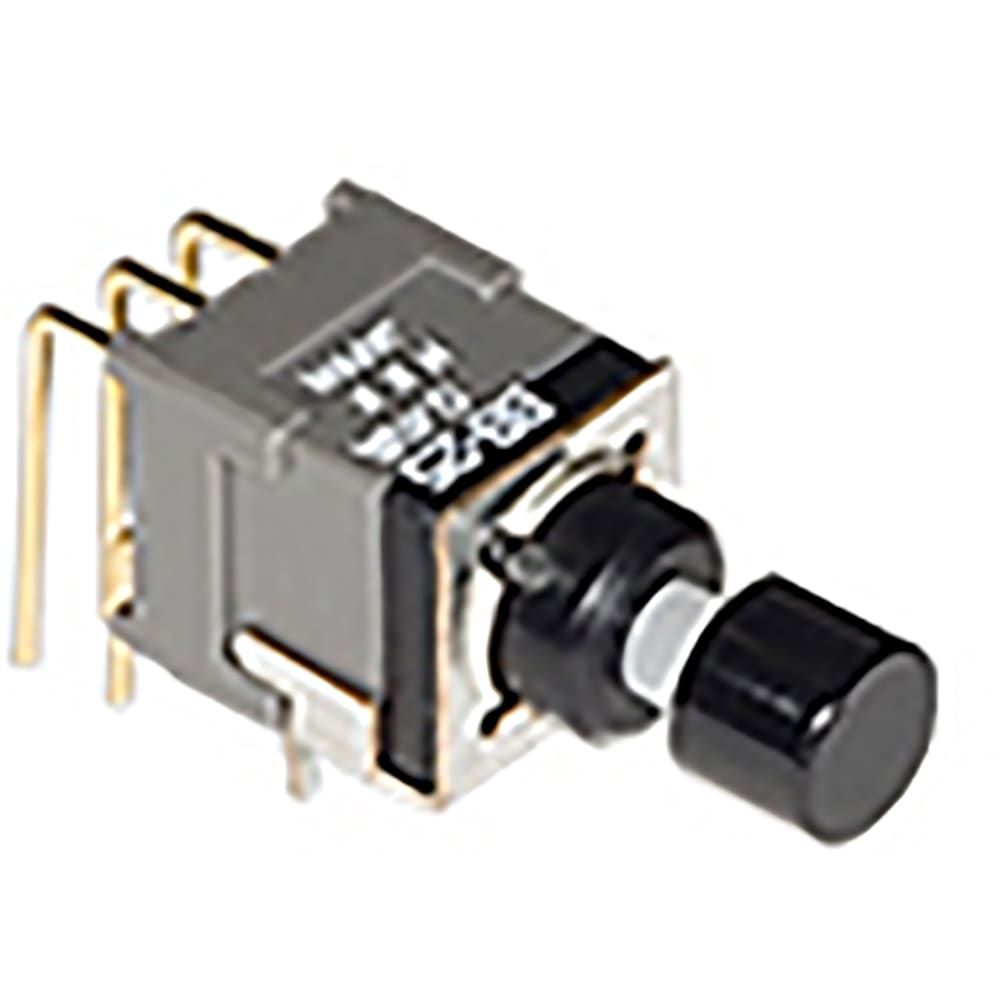

Product Images
