SPST momentary switch with Off-(on) function, rated for 0.05A and 24VDC. Features silver-plated copper/brass contacts, a nylon/glass/polyamide actuator, and solder terminals. This surface mount component offers a mechanical life of 100,000 cycles and an operating force of 1.57N. Operates within a temperature range of -25°C to 70°C.
Storage6mm
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
NKK Switches CB315FP-R technical specifications.
General
| Actuator Material | Nylon, Glass, Polyamide |
| Actuator Type | Standard |
| Contact Material | Copper, Brass, Silver |
| Contact Plating | Silver |
| Current Rating | 50mA |
| Depth | 6.2mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 9mm |
| Max Current Rating | 50mA |
| Max Operating Temperature | 70°C |
| Mechanical Life | 100000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Operating Force | 1.57N |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CB3 |
| Size | 6mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches CB315FP-R Datasheet
Download the complete datasheet for NKK Switches CB315FP-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

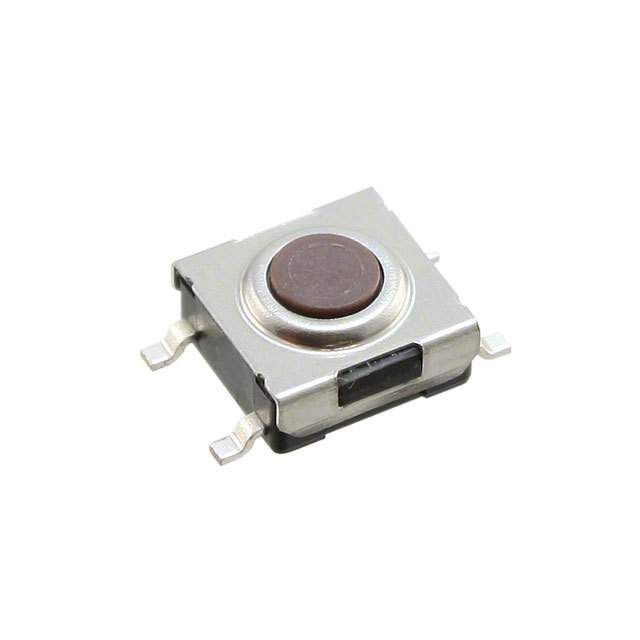

Product Images
