The EB2011-C-J21A is a square button on-mom SPDT switch with a maximum operating temperature of 70°C and a voltage rating of 125V AC. It features a panel mount design and is suitable for 25000 cycles of electrical life and 100000 cycles of mechanical life. The switch is RoHS compliant and contains lead, and is available in bulk packaging.
MountingPanel, Snap in
Quick Jump:
Technical Specifications
NKK Switches EB2011-C-J21A technical specifications.
General
| Actuator Type | Square, Button |
| Electrical Life | 25000Cycles |
| Lead Free | Contains Lead |
| Max Operating Temperature | 70°C |
| Mechanical Life | 100000Cycles |
| Min Operating Temperature | -10°C |
| Mount | Panel, Snap in |
| Orientation | Vertical |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | EB |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches EB2011-C-J21A Datasheet
Download the complete datasheet for NKK Switches EB2011-C-J21A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

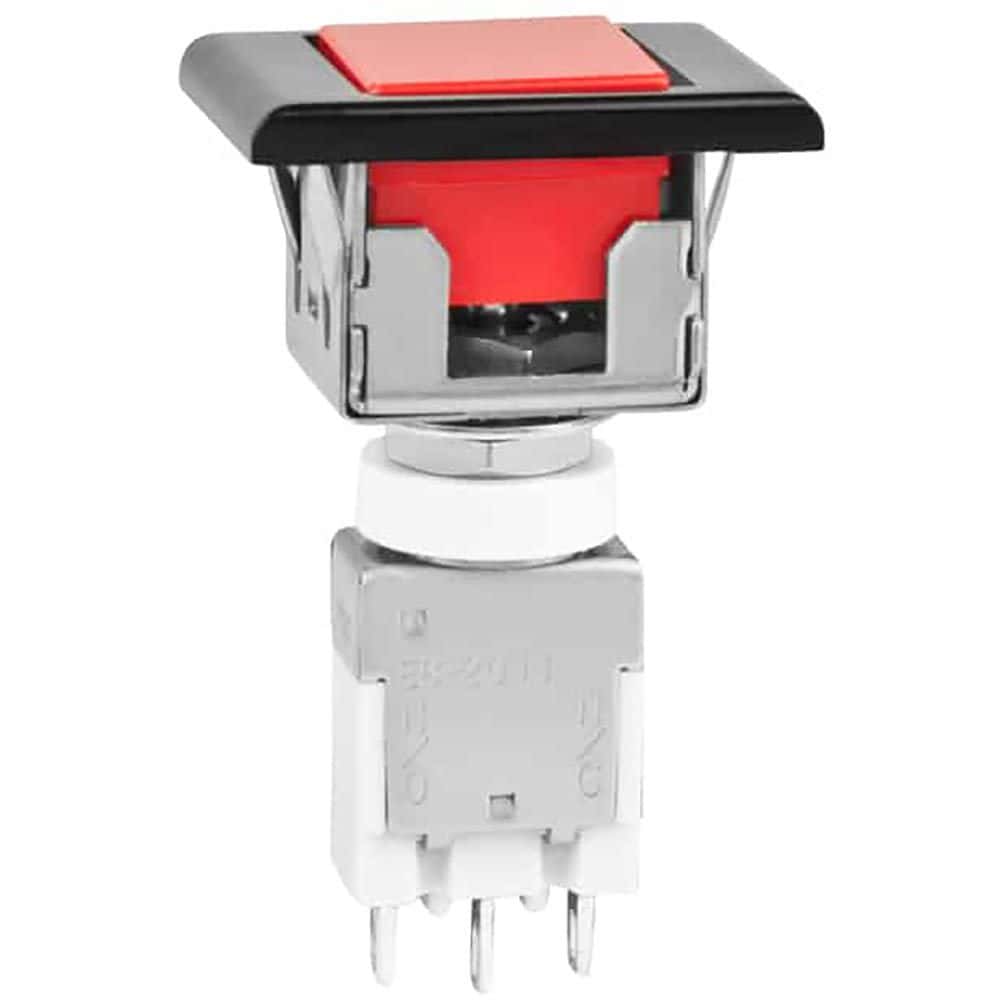

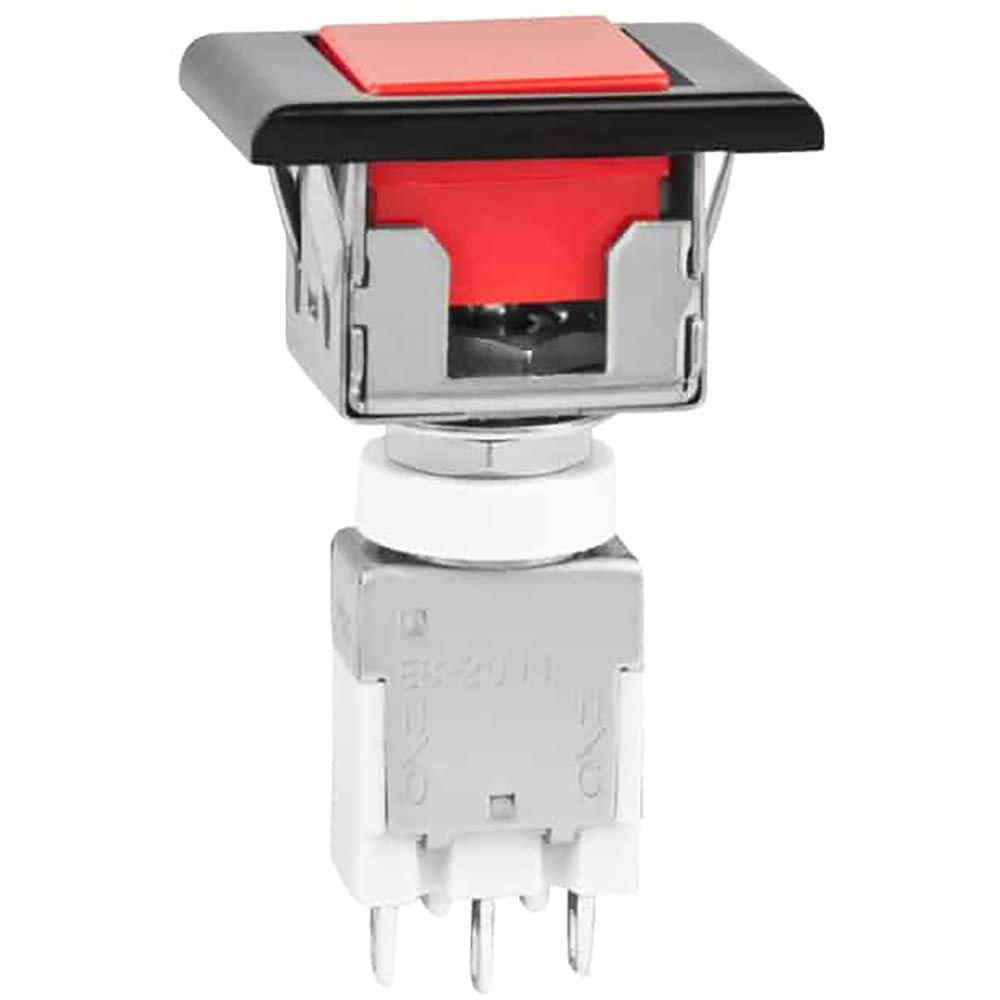

Product Images
