SPDT momentary pushbutton switch featuring a round brass plunger actuator. Offers a 0.1A at 28VAC/28VDC rating with gold-plated copper contacts. Designed for panel mounting with solder lug terminations and a UL94 V-0 flammability rating. Provides 50,000 electrical cycles and 100,000 mechanical cycles, operating between -10°C and 70°C.
Package315
MountingPanel
Quick Jump:
Technical Specifications
NKK Switches EB2011G-BA technical specifications.
General
| Actuator Material | Brass |
| Actuator Type | Round, Button |
| Package/Case | 315 |
| Contact Current Rating | 3A |
| Contact Material | Copper |
| Contact Plating | Gold |
| Depth | 8mm |
| Electrical Life | 50000Cycles |
| Flammability Rating | UL94 V-0 |
| Length | 11mm |
| Life (Hours) | 100000Hour |
| Max Current Rating | 100mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (AC) | 28V |
| Max Voltage Rating (DC) | 28V |
| Mechanical Life | 100000Cycles |
| Mount | Panel |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | EB |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches EB2011G-BA Datasheet
Download the complete datasheet for NKK Switches EB2011G-BA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

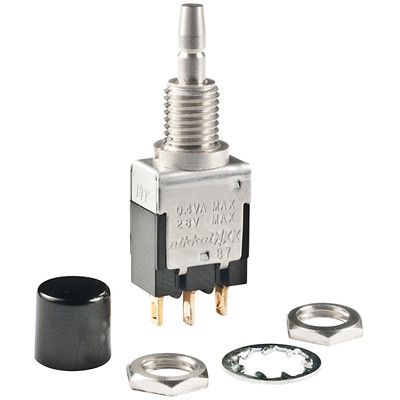

Product Images
