16-position rotary switch with SP16T throw configuration. Features a rotary shaft actuator, straight through-hole mounting with 9 PCB holes, and solder terminals. Rated for 0.1A and 5VDC, with gold-plated copper alloy contacts. Operates within a -25°C to 85°C temperature range and includes illumination.
PackageMetal
MountingPanel, Through Hole
Quick Jump:
Technical Specifications
NKK Switches FR01AR16PB-S technical specifications.
General
| Actuator Type | Rotary |
| Body Material | Nylon, Glass, Polyamide |
| Package/Case | Metal |
| Contact Material | Copper Alloy, Gold |
| Contact Plating | Gold |
| Depth | 13.1mm |
| Illumination Type | Illuminated |
| Lead Free | Lead Free |
| Length | 11mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Panel, Through Hole |
| Number of Poles | 1 |
| Number of Positions | 16 |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FR01 |
| Termination | PC Pins |
| Throw Configuration | SP16T |
| DC Rated Voltage | 5V |
| Washable | No |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches FR01AR16PB-S Datasheet
Download the complete datasheet for NKK Switches FR01AR16PB-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

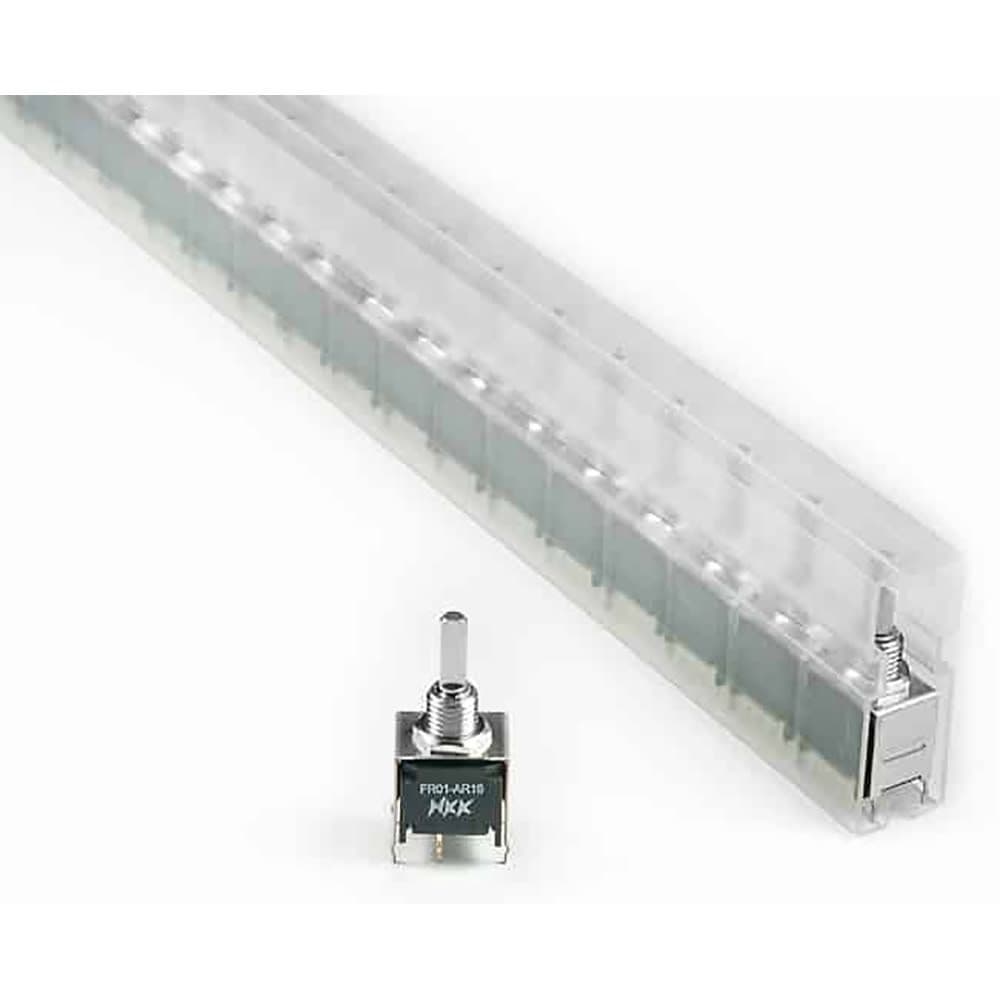

Product Images
