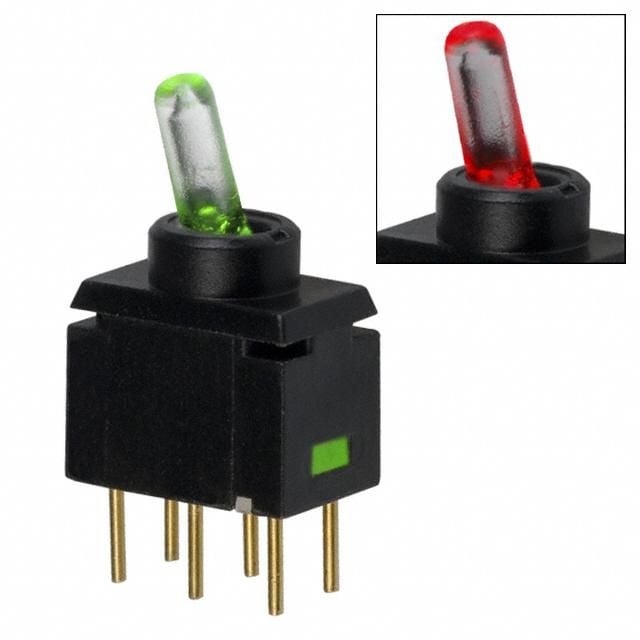

SPDT illuminated toggle switch featuring PC pin termination for PCB mounting. Offers a 0.1A current rating at 28VAC/28VDC, with a 0.4VA power rating and 100,000 electrical cycles. Includes a standard round nylon actuator with a 3.8mm length and a vertical orientation. Available with green or red LED illumination.
Current Rating100mA
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
NKK Switches G12JPCF technical specifications.
General
| Actuator Length | 3.8mm |
| Actuator Material | Nylon, Glass, Polyamide |
| Actuator Type | Standard Round |
| Contact Current Rating | 100mA |
| Contact Material | Bronze, Gold |
| Contact Plating | Gold |
| Current Rating | 100mA |
| Electrical Life | 100000Cycles |
| Illumination Color | Green, Red |
| Illumination Type | Illuminated, LED |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Number of Positions | 2 |
| Operating Force | 1.3N |
| Orientation | Vertical |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | G |
| Switch Function | On-On |
| Switching Voltage | 28V |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
| Width | 4.5mm |
