DPDT toggle switch featuring PC pin termination for PCB mounting with bracket. Offers a 100mA contact current rating at 28VAC/28VDC, with a 0.4VA power rating. The switch function is On-Off-On, and it boasts an electrical life of 100,000 cycles. Constructed with gold-plated bronze contacts and a standard round nylon actuator, this RoHS compliant component operates within a temperature range of -25°C to 85°C.
Current Rating100mA
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
NKK Switches G23AH technical specifications.
General
Actuator Length
3.8mm
Actuator Material
Nylon, Glass, Polyamide, Glass fibre
Actuator Type
Standard Round
Contact Current Rating
100mA
Contact Material
Bronze, Gold
Contact Plating
Gold
Current Rating
100mA
Depth
14.22mm
Electrical Life
100000Cycles
Illumination Type
Illuminated, Non-Illuminated
Lead Free
Lead Free
Length
7.8mm
Max Current Rating
100mA
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
28V
Max Voltage Rating (DC)
28V
Mount
Through Hole, PCB
Orientation
Right Angle
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
G
Switch Function
On-Off-On
Termination
PC Pin
Throw Configuration
DPDT
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
NKK Switches G23AH Datasheet
Download the complete datasheet for NKK Switches G23AH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

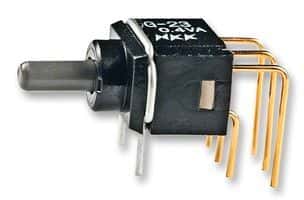

Product Images
