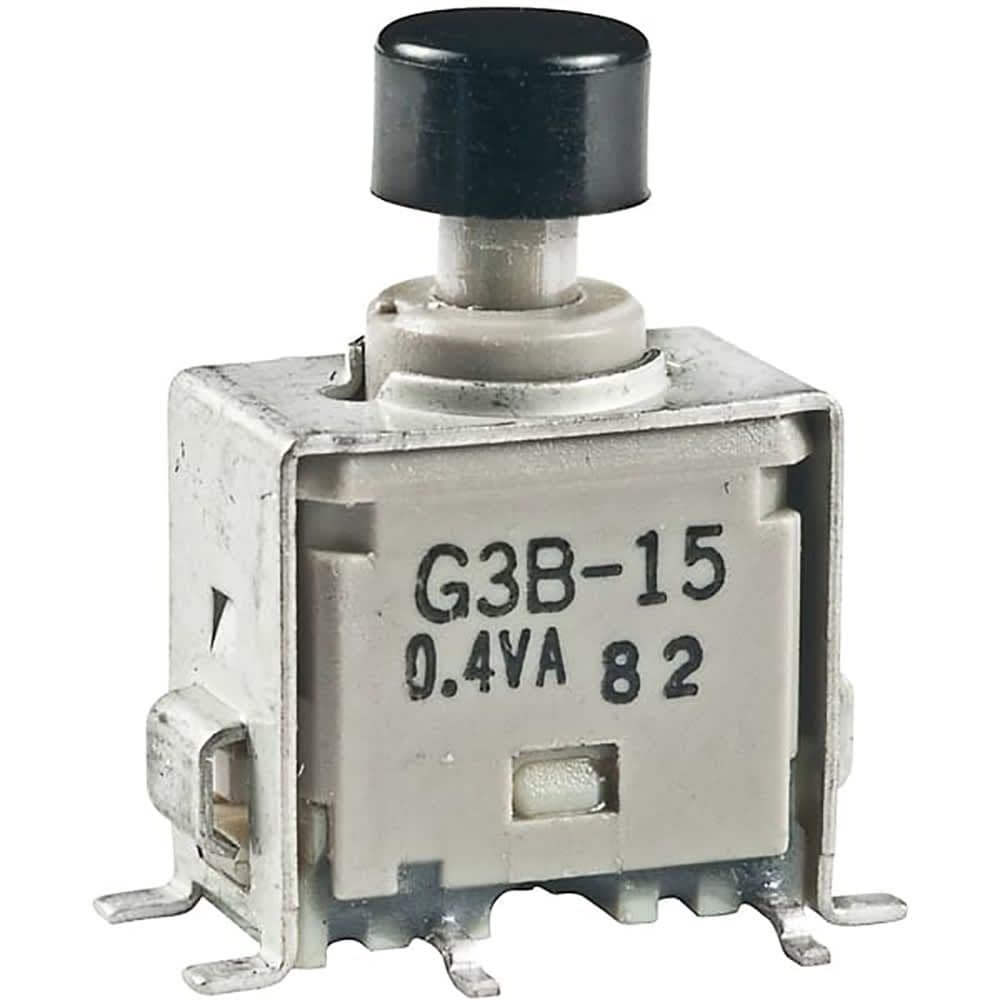

SPDT momentary pushbutton switch featuring a round plunger actuator with a polyphenylene construction. Surface mountable with gull wing SMD terminations, this component offers a 0.1A current rating at 28VAC/28VDC and a 0.4VA power rating. It boasts a gold-plated bronze contact material, providing an electrical and mechanical life of 50,000 cycles. Operating within a temperature range of -30°C to 85°C, this RoHS compliant switch is supplied in tray packaging.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
NKK Switches G3B15AB-XA technical specifications.
General
| Actuator Material | Polyphenylene |
| Actuator Type | Round, Button |
| Package/Case | SMD/SMT |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 7.6mm |
| Electrical Life | 50000Cycles |
| Lead Free | Lead Free |
| Length | 11mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 28V |
| Max Voltage Rating (DC) | 28V |
| Mechanical Life | 50000Cycles |
| Mount | Surface Mount |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | G3B |
| Switch Function | On-Mom |
| Termination | Gull Wing |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches G3B15AB-XA Datasheet
Download the complete datasheet for NKK Switches G3B15AB-XA to view detailed technical specifications.
