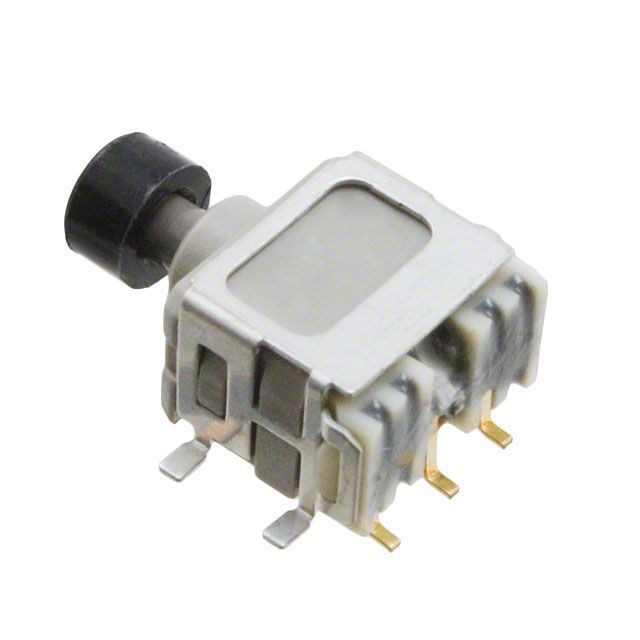

Illuminated pushbutton switch featuring a momentary, SPDT On-(on) function. This surface-mount, right-angle component offers a polyphenylene actuator with a round button design and gold-plated bronze contacts. Rated for 0.014A at 28VDC, it boasts an electrical and mechanical life of 50,000 cycles and operates within a temperature range of -30°C to 85°C. UL94 V-0 flammability rating and RoHS compliance ensure safety and environmental adherence.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NKK Switches G3B15AH-R-YA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NKK Switches G3B15AH-R-YA technical specifications.
| Actuator Material | Polyphenylene |
| Actuator Type | Round, Button |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 13.35mm |
| Electrical Life | 50000Cycles |
| Flammability Rating | UL94 V-0 |
| Lead Free | Lead Free |
| Length | 11mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 28V |
| Max Voltage Rating (DC) | 28V |
| Mechanical Life | 50000Cycles |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | G3B |
| Switch Function | On-Mom |
| Termination | Gull Wing |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
| RoHS | Compliant |
