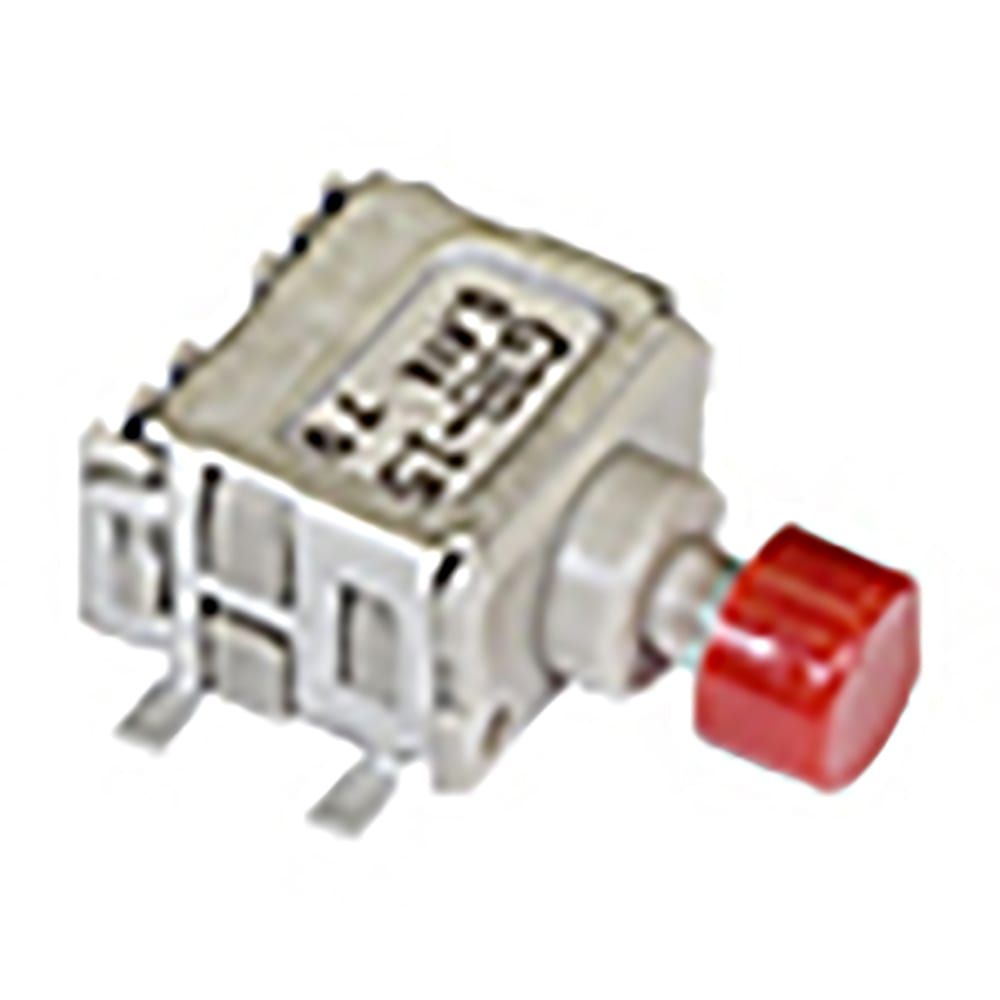

G3B15AP-S-YA

SPDT Illuminated Pushbutton Switch, 0.1A 28V, Momentary, Gull Wing SMD

SPDT momentary pushbutton switch featuring a round plunger actuator with a polyphenylene construction. Surface mountable with gull wing SMD terminations, this component offers a 0.1A current rating at 28VAC/28VDC, with a 0.4VA power rating. Contact material is gold-plated bronze, ensuring reliable performance over an electrical and mechanical life of 50,000 cycles. Operating temperature range spans from -30°C to 85°C, with a UL94 V-0 flammability rating.

PackageSMD/SMT

MountingSurface Mount

Quick Jump:

Technical Specifications

NKK Switches G3B15AP-S-YA technical specifications.

General

Actuator Material	Polyphenylene
Actuator Type	Round, Button
Package/Case	SMD/SMT
Contact Material	Bronze
Contact Plating	Gold
Depth	7.6mm
Electrical Life	50000Cycles
Flammability Rating	UL94 V-0
Length	8.5mm
Max Current Rating	100mA
Max Operating Temperature	85°C
Min Operating Temperature	-30°C
Max Voltage Rating (AC)	28V
Max Voltage Rating (DC)	28V
Mechanical Life	50000Cycles
Mount	Surface Mount
Package Quantity	50
Packaging	Rail/Tube
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	G3B
Switch Function	On-Mom
Termination	Gull Wing
Throw Configuration	SPDT
Voltage Rating (AC)	28V
DC Rated Voltage	28V
