DPDT momentary switch with a round, button actuator made of polyphenylene. Features gold-plated bronze contacts, solder terminals, and a surface mount design with straight gull wing termination. Rated for 28V AC/DC and 100mA, with an electrical and mechanical life of 50,000 cycles. Operates within a temperature range of -30°C to 85°C. RoHS compliant and lead-free.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
NKK Switches G3B25AB-S-YA technical specifications.
General
Actuator Material
Polyphenylene
Actuator Type
Round, Button
Package/Case
SMD/SMT
Contact Material
Bronze
Contact Plating
Gold
Depth
7.6mm
Electrical Life
50000Cycles
Height
0.5inch
Lead Free
Lead Free
Length
0.43inch
Max Current Rating
100mA
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
28V
Max Voltage Rating (DC)
28V
Mechanical Life
50000Cycles
Mount
Surface Mount
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
G3B
Switch Function
On-Mom
Termination
Gull Wing
Throw Configuration
DPDT
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
NKK Switches G3B25AB-S-YA Datasheet
Download the complete datasheet for NKK Switches G3B25AB-S-YA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

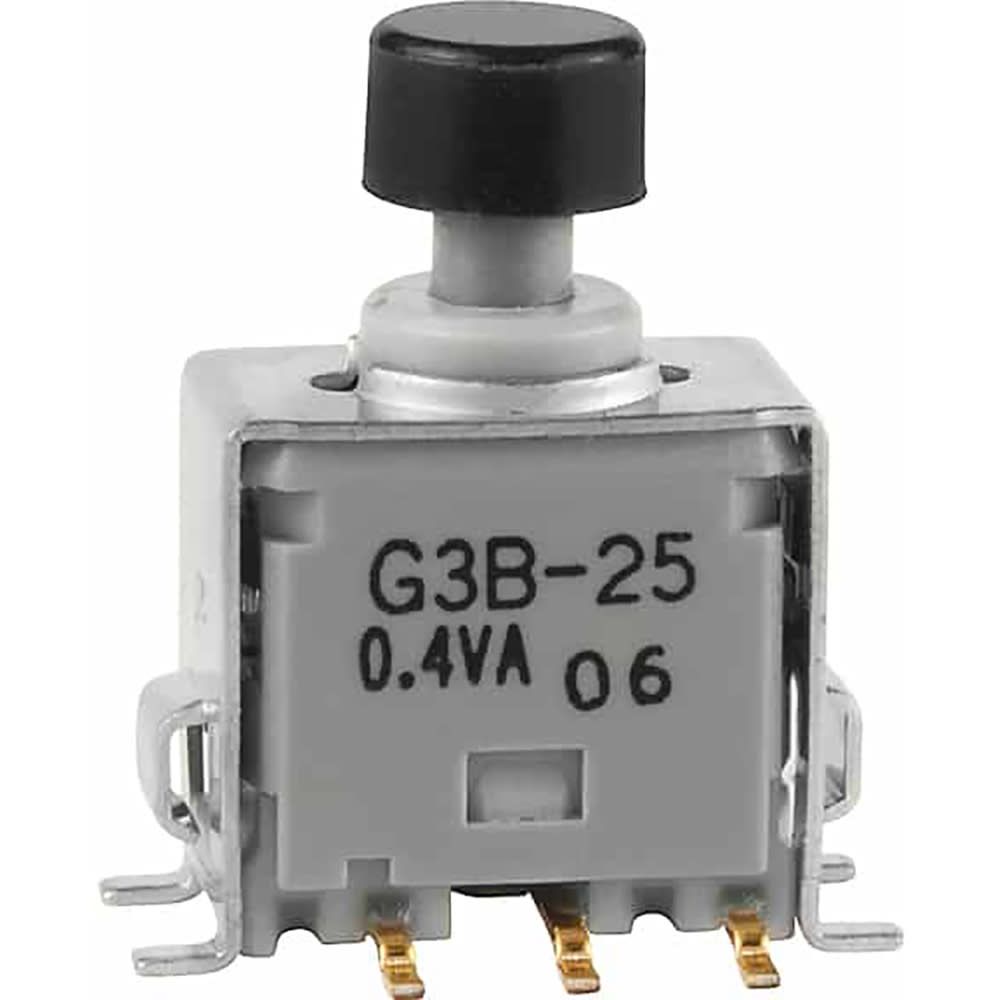

Product Images
