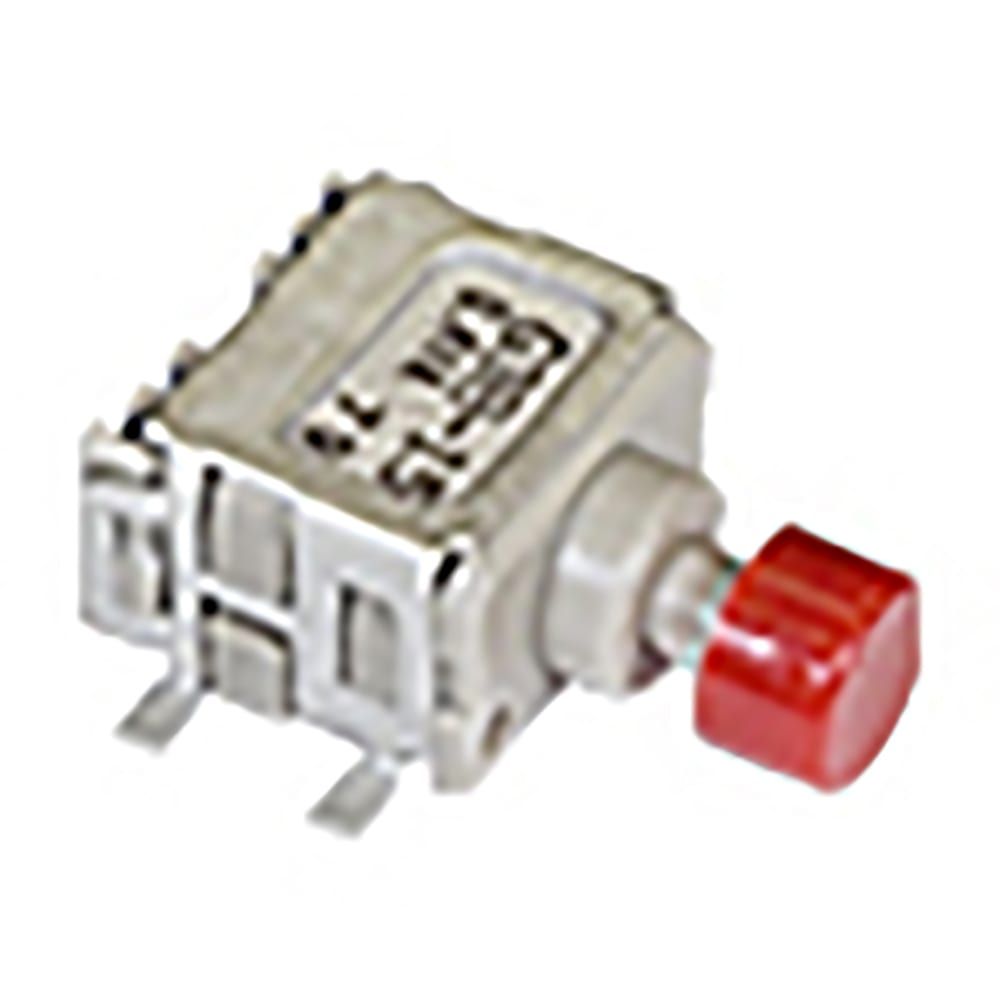

The G3B25AP-S is a surface mount switch with a gold contact plating, rated for 28V DC and 28V AC. It has a mechanical life of 50,000 cycles and an electrical life of 50,000 cycles. The switch operates between -30°C and 85°C and is packaged in a rail/tube with 50 units per package. It is RoHS compliant and features a gull wing termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NKK Switches G3B25AP-S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NKK Switches G3B25AP-S technical specifications.
| Package/Case | SMD/SMT |
| Contact Plating | Gold |
| Electrical Life | 50000Cycles |
| Max Operating Temperature | 85°C |
| Mechanical Life | 50000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Number of Positions | 2 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | G3B |
| Switch Function | On-Mom |
| Termination | Gull Wing |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
| RoHS | Compliant |
