SPDT momentary pushbutton switch featuring PC pin termination for through-hole mounting. Rated for 0.1A at 28VAC/28VDC, with a 0.4VA capacity. Offers a mechanical and electrical life of 50,000 cycles. Constructed with a polyacetal round plunger actuator and gold-plated bronze contacts. Operating temperature range from -30°C to 85°C.
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches GB15AH-XC technical specifications.
General
Actuator Material
Polyacetal
Actuator Type
Round, Button
Contact Material
Bronze
Contact Plating
Gold
Depth
14.22mm
Electrical Life
50000Cycles
Lead Free
Lead Free
Length
7.8mm
Max Current Rating
100mA
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
28V
Max Voltage Rating (DC)
28V
Mechanical Life
50000Cycles
Mount
Through Hole
Orientation
Right Angle
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
GB
Switch Function
On-Mom
Termination
PC Pins
Throw Configuration
SPDT
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
NKK Switches GB15AH-XC Datasheet
Download the complete datasheet for NKK Switches GB15AH-XC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

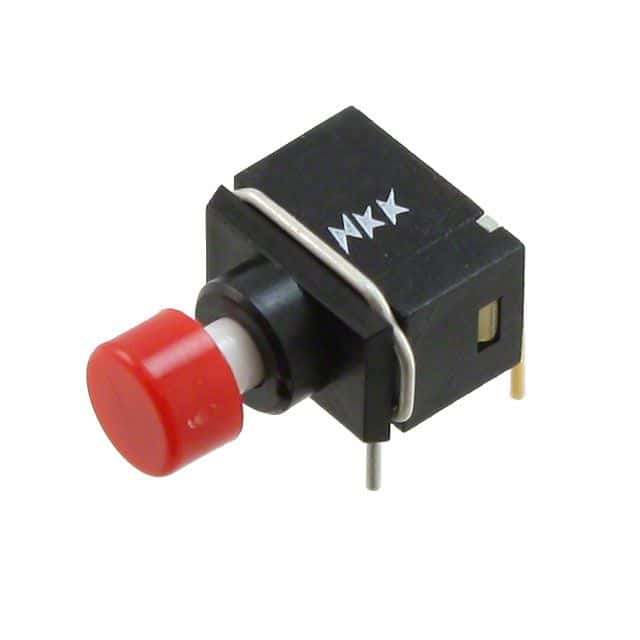

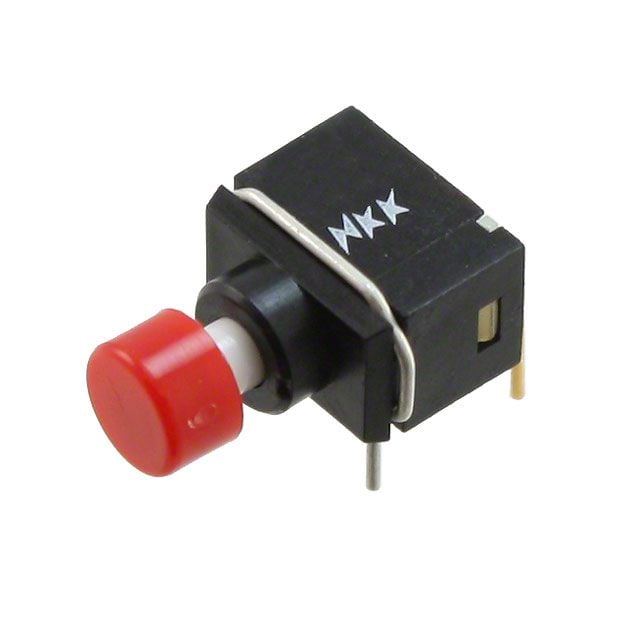

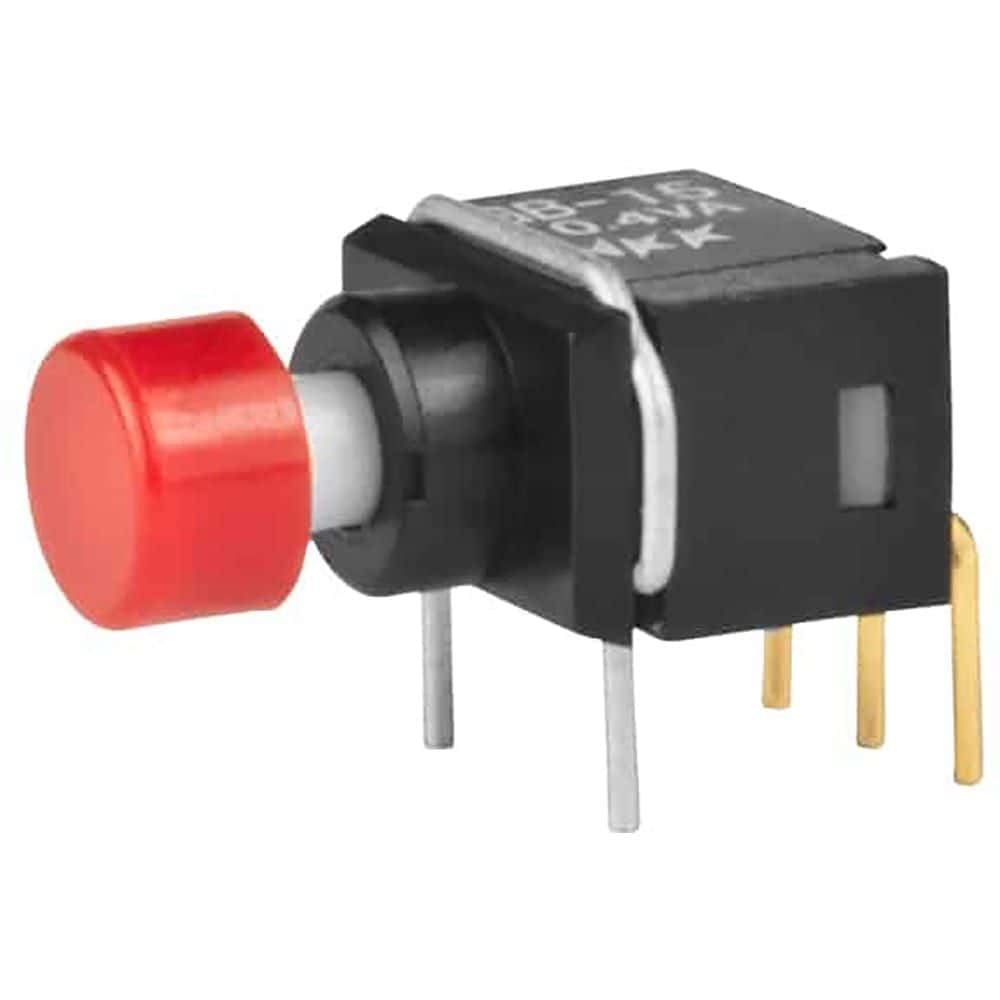

Product Images
