NKK Switches
GB15JHC
Switch Push Button ON (ON) SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches GB15JHC technical specifications.
General
Contact Plating
Gold
Electrical Life
50000Cycles
Illumination Color
Red
Illumination Type
LED
Lead Free
Lead Free
Max Operating Temperature
55°C
Mechanical Life
50000Cycles
Min Operating Temperature
-25°C
Mount
Through Hole
Packaging
Box
RoHS Compliant
Yes
Series
GB
Switch Function
On-Mom
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
NKK Switches GB15JHC Datasheet
Download the complete datasheet for NKK Switches GB15JHC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

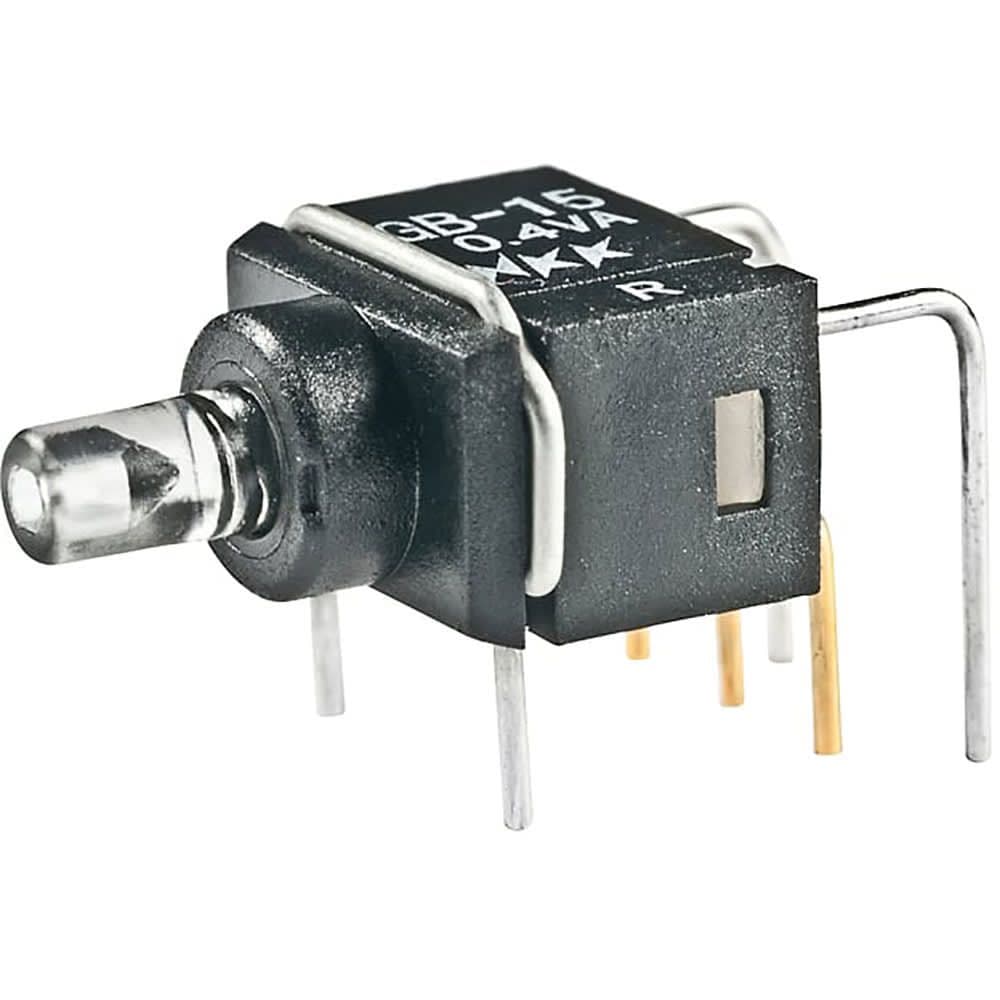

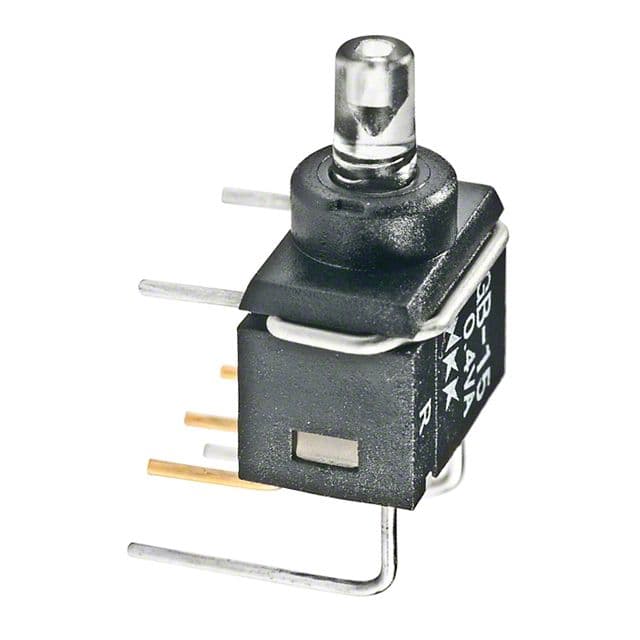

Product Images
