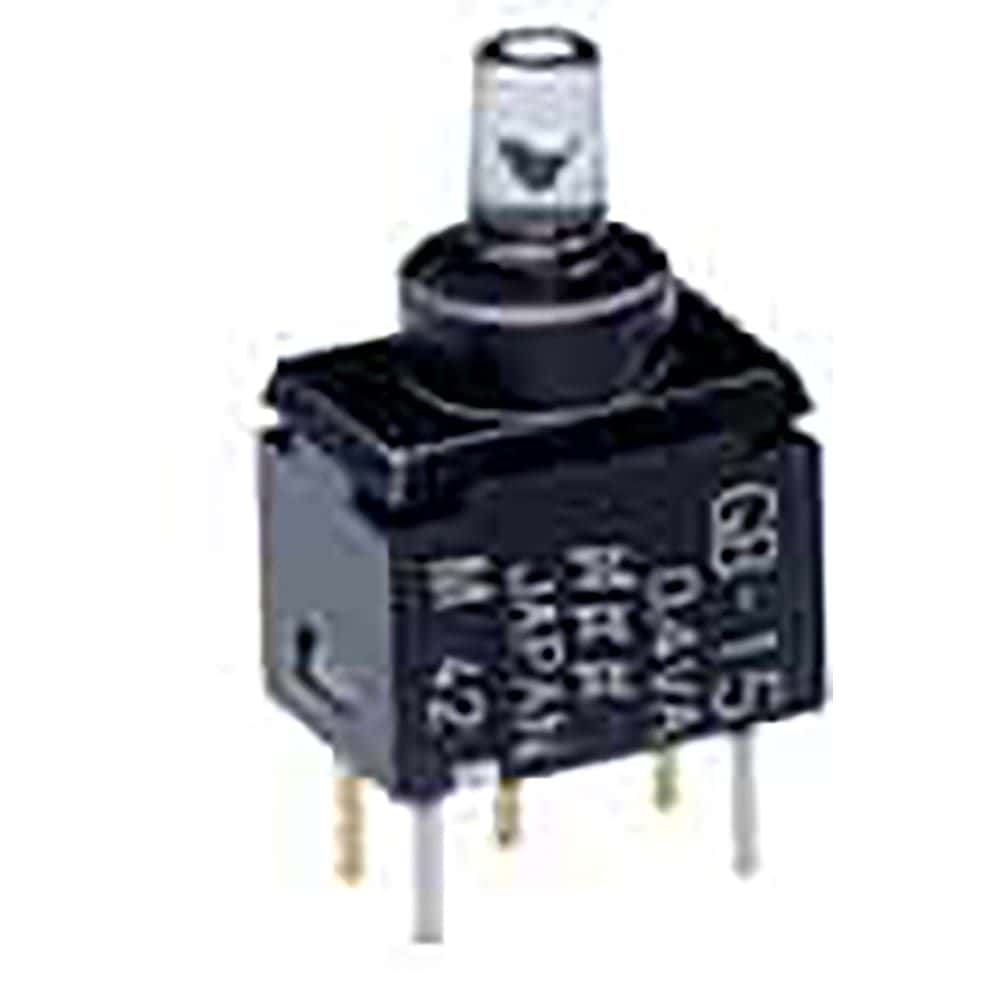

The GB15JPF is a SPDT on-momentary through hole pushbutton switch from NKK Switches. It features a gold contact plating and is rated for 50000 cycles of electrical and mechanical life. The switch has a maximum operating temperature of 55°C and a minimum operating temperature of -25°C. It is compliant with RoHS regulations and is packaged in a box. The GB15JPF has a voltage rating of 28V AC and DC, and is suitable for use in applications where a green LED illumination is required.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NKK Switches GB15JPF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Plating | Gold |
| Electrical Life | 50000Cycles |
| Illumination Color | Green |
| Illumination Type | Illuminated, LED |
| Max Operating Temperature | 55°C |
| Mechanical Life | 50000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Packaging | Box |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | GB |
| Switch Function | On-Mom |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
| RoHS | Compliant |
