NKK Switches
GB215AH-A

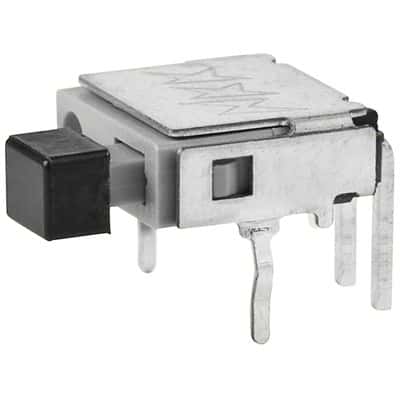

Illuminated Pushbutton Switch, SPST, Off-Mom, Gold Contact, 28V, 100mA, Through Hole
Illuminated pushbutton switch featuring a right-angle, through-hole mount with PC pin termination. Offers SPST (Off-Mom) switch function, polyamide and glass fibre actuator, and bronze contacts with gold plating. Rated for 28V AC/DC and 100mA, with a mechanical and electrical life of 50,000 cycles. Operates within a temperature range of -25°C to 70°C.
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches GB215AH-A technical specifications.
General
Actuator Material
Polyamide, Glass fibre
Contact Material
Bronze
Contact Plating
Gold
Depth
11.43mm
Electrical Life
50000Cycles
Lead Free
Lead Free
Max Current Rating
100mA
Max Operating Temperature
70°C
Mechanical Life
50000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
28V
Max Voltage Rating (DC)
28V
Mount
Through Hole
Orientation
Right Angle
Package Quantity
1
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
GB2
Switch Function
Off-Mom
Termination
PC Pins
Throw Configuration
SPST
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
NKK Switches GB215AH-A Datasheet
Download the complete datasheet for NKK Switches GB215AH-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
