NKK Switches
GB215AH-B
Switch Push Button OFF (ON) SPST Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches GB215AH-B technical specifications.
General
Contact Plating
Gold
Electrical Life
50000Cycles
Lead Free
Contains Lead
Max Operating Temperature
70°C
Mechanical Life
50000Cycles
Min Operating Temperature
-25°C
Mount
Through Hole
Orientation
Right Angle
Package Quantity
1
Packaging
Tray
RoHS Compliant
Yes
Series
GB2
Switch Function
Off-Mom
Termination
PC Pin
Throw Configuration
SPST
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
NKK Switches GB215AH-B Datasheet
Download the complete datasheet for NKK Switches GB215AH-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

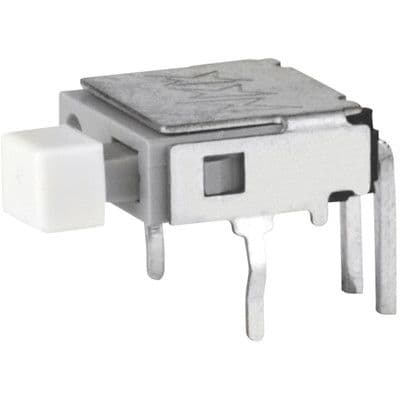

Product Images
