NKK Switches
GW12LJPCF
Rocker Switch, SPDT, On-on, 6 PCB Hole Cnt, Solder Terminal, Paddle Actuator, Through Hole-straight,
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches GW12LJPCF technical specifications.
General
| Color | Green, Red |
| Contact Plating | Gold |
| Electrical Life | 50000Cycles |
| Illumination Color | Green, Red |
| Illumination Type | LED, Illuminated |
| Lead Free | Lead Free |
| Max Operating Temperature | 55°C |
| Mechanical Life | 50000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | GW |
| Switch Function | On-On |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches GW12LJPCF Datasheet
Download the complete datasheet for NKK Switches GW12LJPCF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

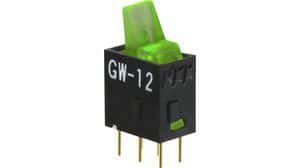

Product Images
