NKK Switches
GW22RCV
Rocker Switch, DPDT, On-on, Solder Terminal, Rocker Actuator, Through Hole-right Angle,
MountingThrough Hole, Vertical
Quick Jump:
Technical Specifications
NKK Switches GW22RCV technical specifications.
General
| Actuator Type | Rocker |
| Color | Red |
| Contact Plating | Gold |
| Electrical Life | 50000Cycles |
| Illumination Type | Illuminated |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Mechanical Life | 50000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Through Hole, Vertical |
| Orientation | Vertical |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | GW |
| Switch Function | On-On |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches GW22RCV Datasheet
Download the complete datasheet for NKK Switches GW22RCV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

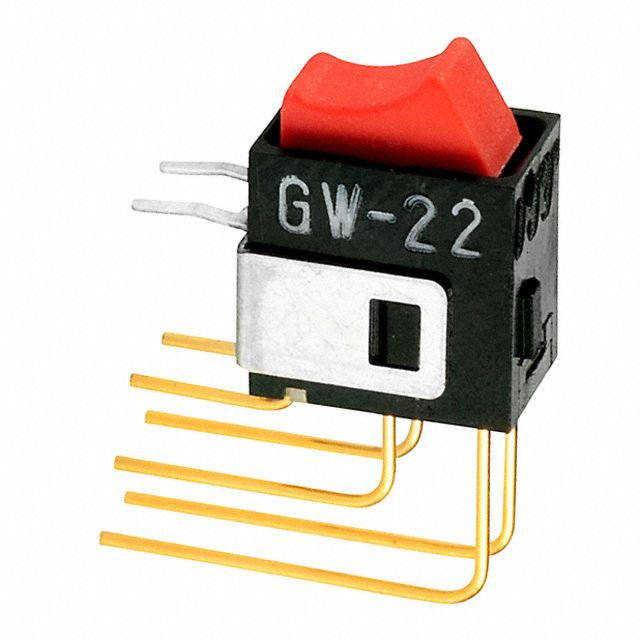

Product Images
