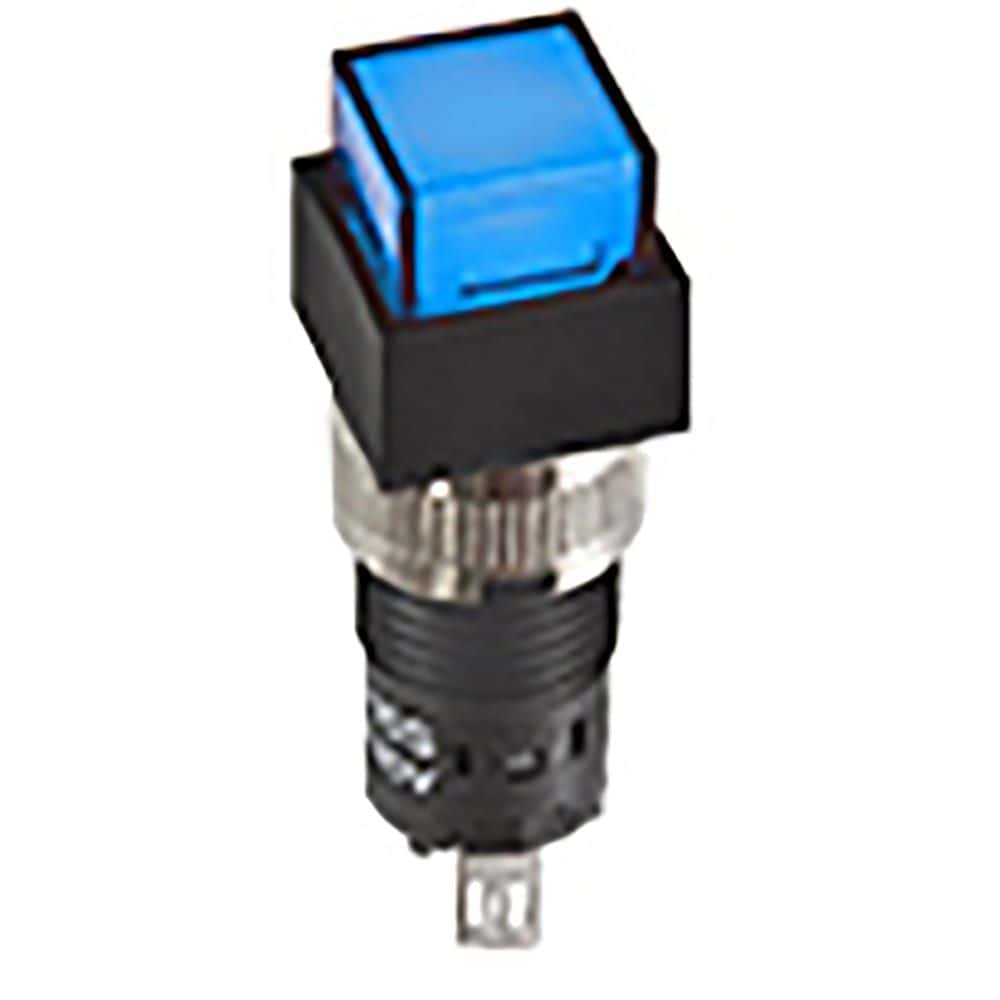

NKK Switches
HB15SKW01-5F-AB
Switch Push Button ON (ON) SPDT Square Button 0.1A 30VAC 30VDC Momentary Contact Solder Lug Panel Mount
MountingPanel, Front
Quick Jump:
Technical Specifications
NKK Switches HB15SKW01-5F-AB technical specifications.
General
Actuator Type
Square, Button
Contact Current Rating
100mA
Contact Plating
Silver
Electrical Life
50000Cycles
Illumination Color
Green
Illumination Type
Illuminated, LED
Lead Free
Lead Free
Max Operating Temperature
50°C
Mechanical Life
100000Cycles
Min Operating Temperature
-25°C
Mount
Panel, Front
Orientation
Vertical
Packaging
Bulk
RoHS Compliant
Yes
Series
HB
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
30V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches HB15SKW01-5F-AB Datasheet
Download the complete datasheet for NKK Switches HB15SKW01-5F-AB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
