NKK Switches
IS15ABFP4B

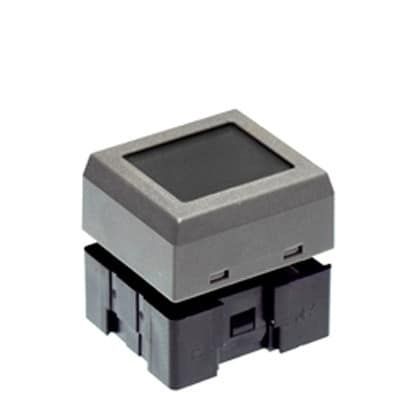

Switch Push Button N.O. SPST Rectangular LCD 0.1A 12VDC Momentary Contact PC Pins Thru-Hole
Current Rating100mA
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches IS15ABFP4B technical specifications.
General
| Color | White |
| Contact Plating | Gold |
| Current Rating | 100mA |
| Illumination Color | White |
| Illumination Type | LED |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Operating Force | 224gf |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pixel Format | X |
| Series | SmartDisplay™ |
| Switch Function | Off-Mom |
| Termination | PC Pin |
| Throw Configuration | SPST |
| DC Rated Voltage | 12V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches IS15ABFP4B Datasheet
Download the complete datasheet for NKK Switches IS15ABFP4B to view detailed technical specifications.
