Illuminated pushbutton switch featuring a 64x48 pixel passive matrix OLED display capable of 65536 colors. Offers a 15.5mm x 11.6mm viewing area with a 0.21mm pixel height and 0.2mm pixel width. This SPST-NO, Off-Mom switch has gold contacts rated for 0.1A at 12VDC and requires a 2.4-3.5VDC supply voltage. Through-hole mounting with PC pin termination and an operating force of 204gf.
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches ISC15ANP4 technical specifications.
General
| Contact Material | Gold |
| Illumination Color | Blue, Green, Red |
| Illumination Type | Illuminated, LED |
| Lead Free | Lead Free |
| Max Current Rating | 100mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 12V |
| Mount | Through Hole |
| Operating Force | 204gf |
| Packaging | Bulk |
| Pixel Format | X |
| Pixel Height | 0.21mm |
| Pixel Width | 0.2mm |
| Reach SVHC Compliant | No |
| Series | SmartDisplay™ |
| Switch Function | Off-Mom |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Viewing Area (height) | 15.5mm |
| Viewing Area (width) | 11.6mm |
Compliance
| RoHS | Not Compliant |
Datasheet
NKK Switches ISC15ANP4 Datasheet
Download the complete datasheet for NKK Switches ISC15ANP4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

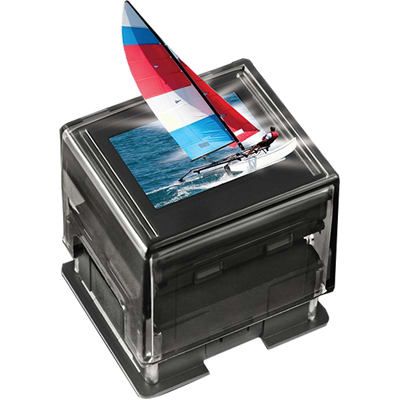

Product Images
