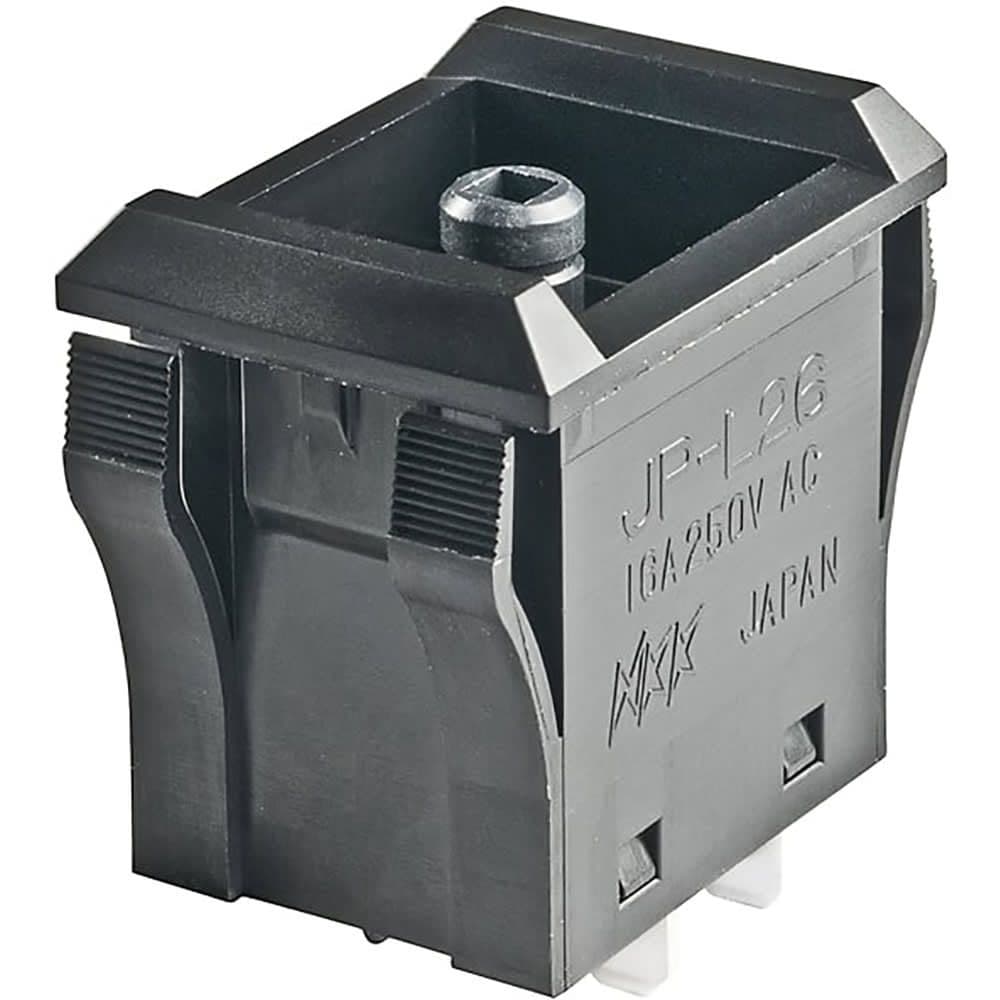

The JPL26B is a 2-position DPST panel mount switch with a voltage rating of 125V AC and a maximum operating temperature of 70°C. It features a brass contact material and a mechanical life of 25,000 cycles. The switch is available in a tray packaging and is compliant with RoHS regulations. It has a snap-in mount and a vertical orientation, making it suitable for panel mounting applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NKK Switches JPL26B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NKK Switches JPL26B technical specifications.
| Package/Case | 125 |
| Contact Material | Brass |
| Electrical Life | 25000Cycles |
| Lead Free | Contains Lead |
| Max Operating Temperature | 70°C |
| Mechanical Life | 25000Cycles |
| Min Operating Temperature | -10°C |
| Mount | Panel, Snap in |
| Number of Positions | 2 |
| Orientation | Vertical |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | JP |
| Switch Function | Off-On |
| Termination | Solder |
| Throw Configuration | DPST |
| Voltage Rating (AC) | 125V |
| RoHS | Compliant |
