NKK Switches
JS0204AP4-R
Switch DIP OFF ON SPST 4 Raised Slide 0.025A 24VDC Gull Wing 2000Cycles 2.54mm SMD T/R
MountingSurface Mount
Quick Jump:
Technical Specifications
NKK Switches JS0204AP4-R technical specifications.
General
Actuator Type
Slide (Standard)
Body Material
Nylon, Glass, Polyamide
Contact Material
Copper
Contact Plating
Gold
Electrical Life
2000Cycles
Lead Free
Lead Free
Max Operating Temperature
70°C
Mechanical Life
2000Cycles
Min Operating Temperature
-20°C
Mount
Surface Mount
Number of Positions
4
Package Quantity
500
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
JS
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
No
Compliance
RoHS
Compliant
Datasheet
NKK Switches JS0204AP4-R Datasheet
Download the complete datasheet for NKK Switches JS0204AP4-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

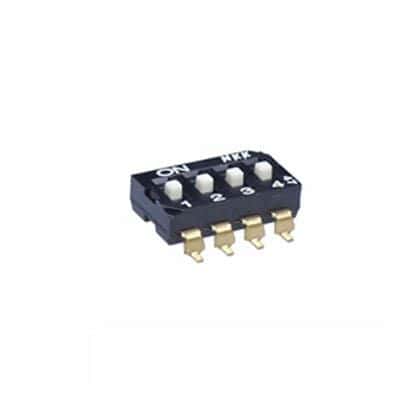

Product Images
