Technical Specifications
NKK Switches JS0404FP4 technical specifications.
General
Actuator Type
Slide (Standard)
Body Material
Nylon, Glass, Polyamide
Contact Material
Copper Alloy
Contact Plating
Gold
Electrical Life
2000Cycles
Lead/Base Style
Gull Wing
Max Operating Temperature
85°C
Mechanical Life
2000Cycles
Min Operating Temperature
-30°C
Mount
Surface Mount
Number of Positions
4
Number of Switches
4
Packaging
Bulk
Pitch
0.05inch
Series
JS
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
No
Compliance
RoHS
Compliant
Datasheet
NKK Switches JS0404FP4 Datasheet
Download the complete datasheet for NKK Switches JS0404FP4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

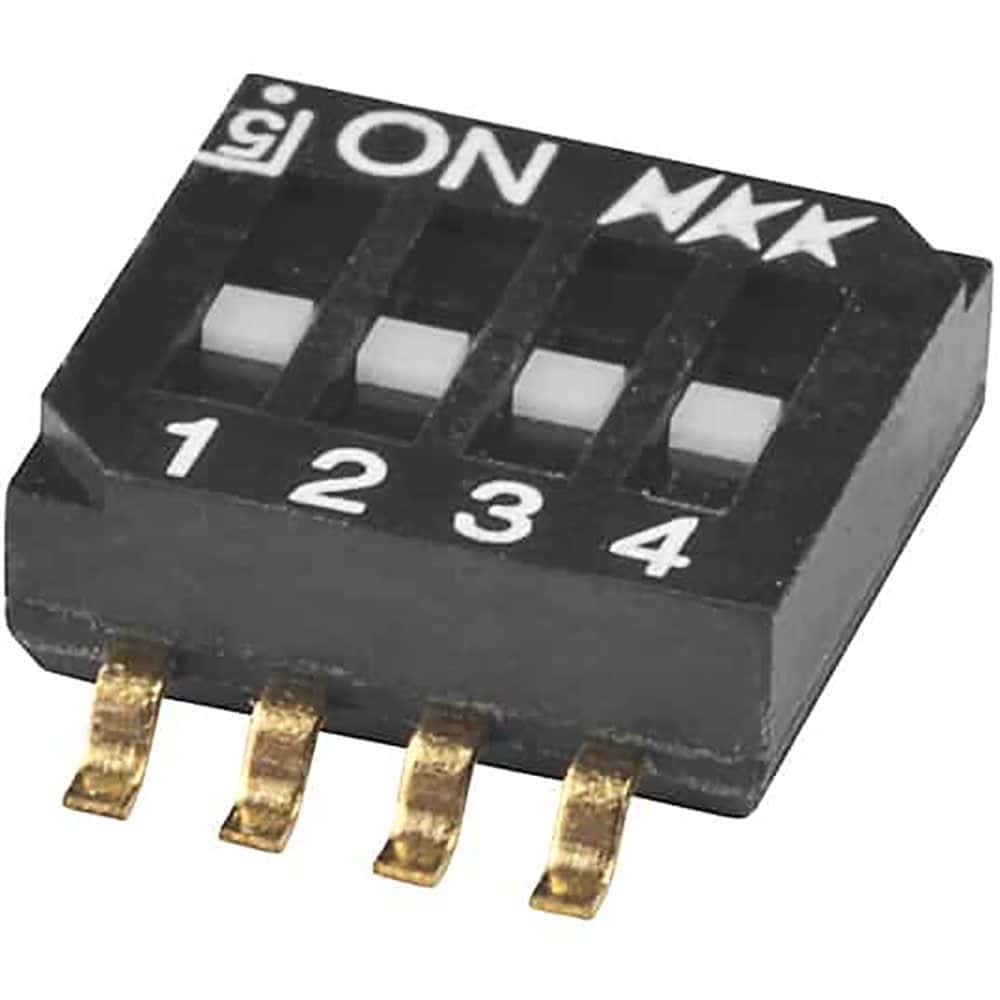

Product Images
