SPST DIP switch featuring a 4-position, 4-circuit configuration with a flush slide actuator. Surface mountable with gull wing termination and a 2.54mm terminal pitch, this component offers a 25mA current rating at 24VDC. Constructed with a nylon, glass, and polyamide body and copper alloy contacts with gold plating, it provides an electrical and mechanical life of 2000 cycles. Operating temperature range is -30°C to 85°C.
Current Rating25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
NKK Switches JS0404FP4-S technical specifications.
General
Actuator Type
Slide (Standard)
Body Material
Nylon, Glass, Polyamide
Contact Material
Copper Alloy, Copper
Contact Plating
Gold
Current Rating
25mA
Depth
8.1mm
Electrical Life
2000Cycles
Lead/Base Style
Gull Wing
Length
6.22mm
Max Current Rating
25mA
Max Operating Temperature
85°C
Mechanical Life
2000Cycles
Min Operating Temperature
-30°C
Mount
Surface Mount
Number of Circuits
4
Number of Positions
4
Number of Switches
4
Orientation
Straight
Package Quantity
80
Packaging
Rail/Tube
Pitch
0.05inch
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
JS
Terminal Pitch
2.54mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
No
Compliance
RoHS
Compliant
Datasheet
NKK Switches JS0404FP4-S Datasheet
Download the complete datasheet for NKK Switches JS0404FP4-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

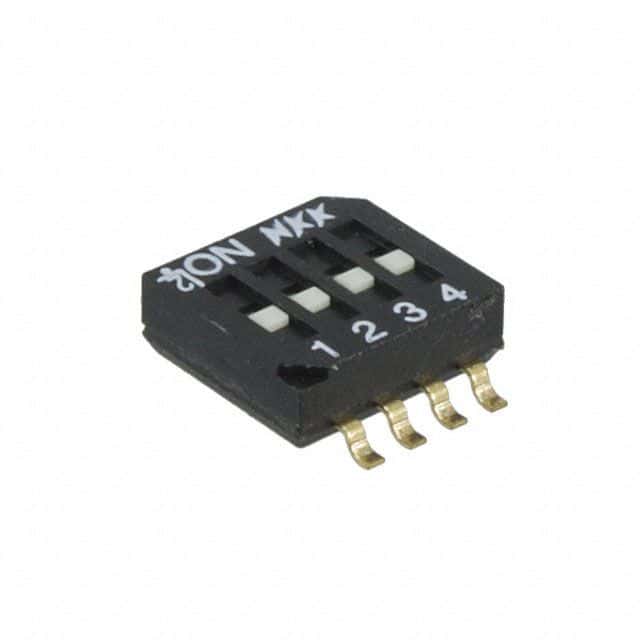

Product Images
