NKK Switches
JS0408FP4-R
Switch DIP OFF ON SPST 8 Recessed Slide 0.025A 24VDC Gull Wing 2000Cycles 1.27mm SMD T/R
MountingSurface Mount
Quick Jump:
Technical Specifications
NKK Switches JS0408FP4-R technical specifications.
General
| Actuator Type | Slide (Standard) |
| Body Material | Nylon, Glass, Polyamide |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Electrical Life | 2000Cycles |
| Max Operating Temperature | 85°C |
| Mechanical Life | 2000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Number of Positions | 8 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | JS |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Washable | No |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches JS0408FP4-R Datasheet
Download the complete datasheet for NKK Switches JS0408FP4-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

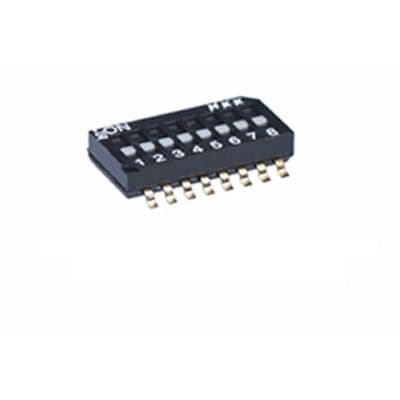

Product Images
