NKK Switches
KB15RKW01-5D24-JB
Switch Push Button ON (ON) SPDT Rectangular Button 1A 250VAC 30VDC Momentary Contact Panel Mount Solder Lug
Current Rating1A
MountingPanel, Front
Quick Jump:
Technical Specifications
NKK Switches KB15RKW01-5D24-JB technical specifications.
General
Contact Plating
Silver
Current Rating
1A
Electrical Life
50000Cycles
Flammability Rating
UL94 V-0
Illumination Color
Orange
Illumination Type
LED
Lead Free
Contains Lead
Life (Hours)
50000Hour
Max Operating Temperature
50°C
Mechanical Life
100000Cycles
Min Operating Temperature
-25°C
Mount
Panel, Front
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KB
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches KB15RKW01-5D24-JB Datasheet
Download the complete datasheet for NKK Switches KB15RKW01-5D24-JB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

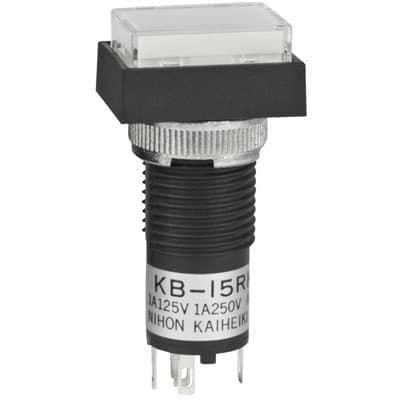

Product Images
