NKK Switches
KB15RKW01-GG
Switch Push Button ON (ON) SPDT Rectangular Button 1A 250VAC 30VDC Momentary Contact Panel Mount Solder Lug
Current Rating1A
MountingPanel, Front
Quick Jump:
Technical Specifications
NKK Switches KB15RKW01-GG technical specifications.
General
Contact Plating
Silver
Current Rating
1A
Electrical Life
50000Cycles
Flammability Rating
UL94 V-0
Max Operating Temperature
70°C
Mechanical Life
100000Cycles
Min Operating Temperature
-25°C
Mount
Panel, Front
Package Quantity
1
Packaging
Bulk
RoHS Compliant
Yes
Series
KB
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches KB15RKW01-GG Datasheet
Download the complete datasheet for NKK Switches KB15RKW01-GG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

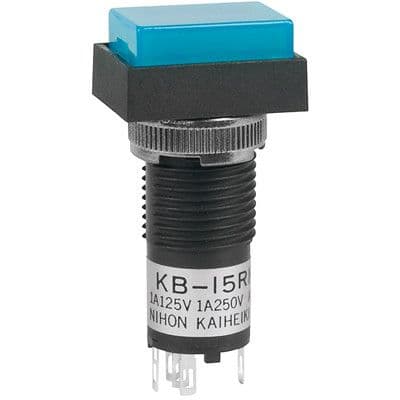

Product Images
