NKK Switches
KB16RKW01B
Switch Push Button ON ON SPDT Rectangular Button 1A 250VAC 30VDC Alternate Contact Panel Mount Solder Lug
Current Rating1A
MountingPanel, Front
Quick Jump:
Technical Specifications
NKK Switches KB16RKW01B technical specifications.
General
Contact Plating
Silver
Current Rating
1A
Electrical Life
50000Cycles
Flammability Rating
UL94 V-0
Max Operating Temperature
70°C
Mechanical Life
100000Cycles
Min Operating Temperature
-25°C
Mount
Panel, Front
Package Quantity
1
Packaging
Bulk
RoHS Compliant
No
Series
KB
Switch Function
On-On
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Not Compliant
Datasheet
NKK Switches KB16RKW01B Datasheet
Download the complete datasheet for NKK Switches KB16RKW01B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

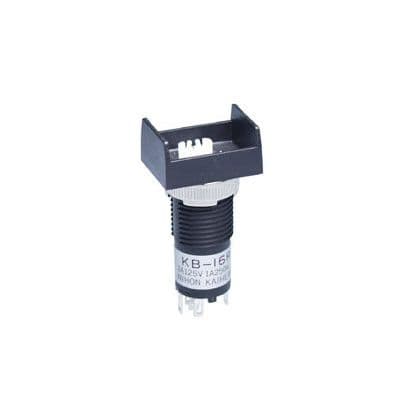

Product Images
