NKK Switches
KB25RKW01-5C12-JC
Switch Push Button ON (ON) DPDT Rectangular Button 1A 250VAC 30VDC Momentary Contact Panel Mount Solder Lug
Current Rating1A
MountingPanel, Front
Quick Jump:
Technical Specifications
NKK Switches KB25RKW01-5C12-JC technical specifications.
General
Contact Plating
Silver
Current Rating
1A
Electrical Life
50000Cycles
Illumination Color
Red
Illumination Type
LED
Max Operating Temperature
50°C
Mechanical Life
100000Cycles
Min Operating Temperature
-25°C
Mount
Panel, Front
Package Quantity
1
Packaging
Bulk
RoHS Compliant
Yes
Series
KB
Switch Function
On-Mom
Termination
Solder
Throw Configuration
DPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches KB25RKW01-5C12-JC Datasheet
Download the complete datasheet for NKK Switches KB25RKW01-5C12-JC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

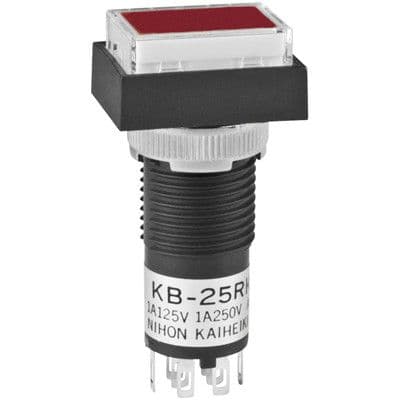

Product Images
