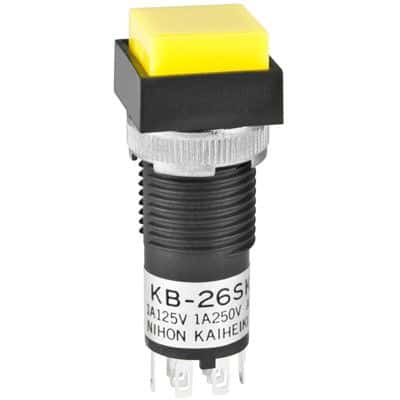

The KB26SKW01-05-EB is a panel mount, square button switch with a silver contact plating and a maximum operating temperature of 50°C. It has a current rating of 1A and a voltage rating of 30V DC and 125V AC. The switch features a throw configuration of DPDT and is RoHS compliant. It is also lead free and has a mechanical life of 100,000 cycles and an electrical life of 50,000 cycles.
Current Rating1A
MountingPanel, Front
Quick Jump:
Technical Specifications
NKK Switches KB26SKW01-05-EB technical specifications.
General
| Actuator Type | Square, Button |
| Contact Current Rating | 1A |
| Contact Plating | Silver |
| Current Rating | 1A |
| Electrical Life | 50000Cycles |
| Flammability Rating | UL94 V-0 |
| Illumination Color | Yellow |
| Lead Free | Lead Free |
| Max Operating Temperature | 50°C |
| Mechanical Life | 100000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Panel, Front |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | KB |
| Switch Function | On-On |
| Termination | Solder |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches KB26SKW01-05-EB Datasheet
Download the complete datasheet for NKK Switches KB26SKW01-05-EB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
