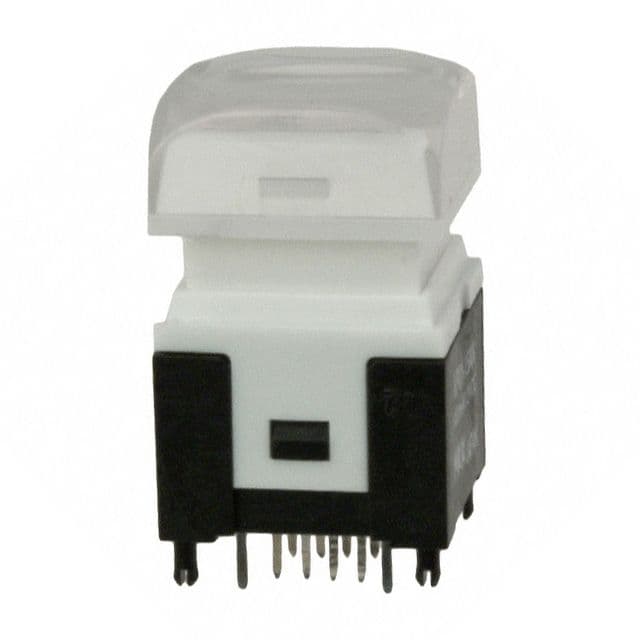

KP0115ANBKG03RGB-2SJB

Illuminated SPST Pushbutton Switch, 100mA 12VDC, RGB LED, Thru-Hole

Illuminated pushbutton switch featuring a momentary SPST contact configuration with a 12VDC, 100mA rating. This through-hole mount component offers a square polyacetal actuator with gold-plated stainless steel contacts, providing 5,000,000 cycles of electrical and mechanical life. Integrated LED illumination is available in blue, green, and red. Operating within a -25°C to 50°C temperature range, this lead-free and RoHS compliant switch utilizes PC pin terminations.

Current Rating100mA

MountingThrough Hole

Quick Jump:

Technical Specifications

NKK Switches KP0115ANBKG03RGB-2SJB technical specifications.

General

Actuator Material	Polyacetal
Actuator Type	Square, Button
Contact Material	Stainless Steel
Contact Plating	Gold
Current Rating	100mA
Depth	17.4mm
Electrical Life	5000000Cycles
Illumination Color	Blue, Green, Red
Illumination Type	LED
Lead Free	Lead Free
Length	17.4mm
Max Current Rating	100mA
Max Operating Temperature	50°C
Max Voltage Rating (DC)	12V
Mechanical Life	5000000Cycles
Min Operating Temperature	-25°C
Mount	Through Hole
Packaging	Bulk
RoHS Compliant	Yes
Series	KP
Switch Function	Off-Mom
Termination	PC Pins
Throw Configuration	SPST
DC Rated Voltage	12V
