This illuminated SPDT on-mom switch features a silver contact plating, a current rating of 3A, and a DC rated voltage of 30V. It has a mechanical life of 1,000,000 cycles and an electrical life of 100,000 cycles. The switch is RoHS compliant and has a flammability rating of UL94 V-0. It can operate between -25°C and 70°C and is available in a panel mount configuration with a snap-in design.
Current Rating3A
MountingPanel, Snap in
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the NKK Switches LB15CKW01/U datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
NKK Switches LB15CKW01/U technical specifications.
General
| Contact Plating | Silver |
| Current Rating | 3A |
| Electrical Life | 100000Cycles |
| Flammability Rating | UL94 V-0 |
| Illumination Type | Illuminated |
| Max Operating Temperature | 70°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Panel, Snap in |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | LB |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches LB15CKW01/U Datasheet
Download the complete datasheet for NKK Switches LB15CKW01/U to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

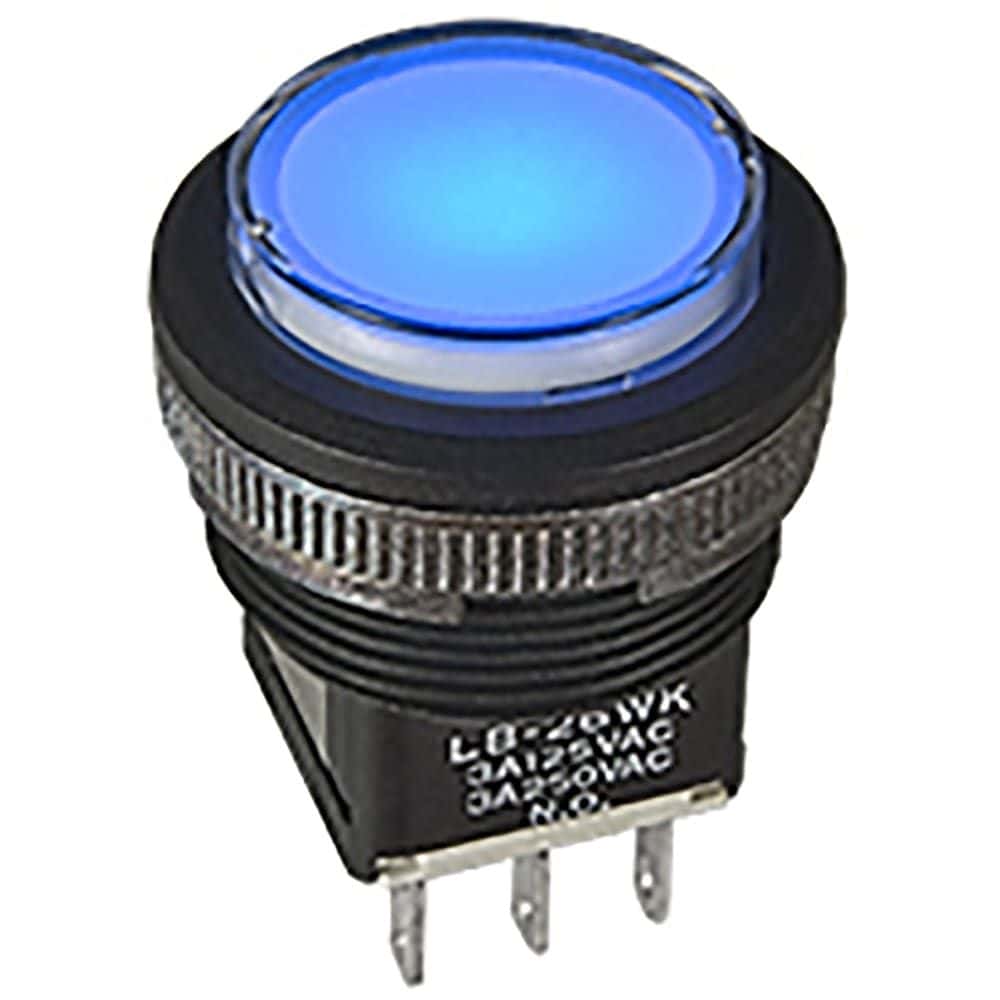

Product Images
