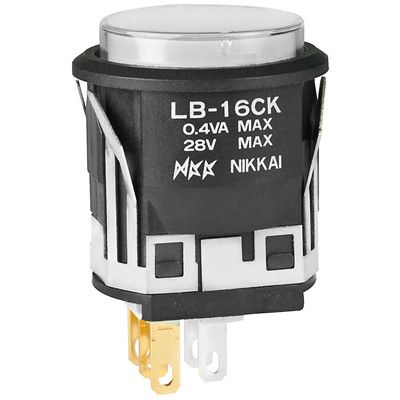

Illuminated pushbutton switch featuring a round, white LED actuator. This SPDT, ON-ON switch offers a 0.1A current rating at 28VAC/28VDC, with a 0.4VA power rating. Constructed with gold-plated copper contacts, it boasts an electrical life of 100,000 cycles and a mechanical life of 200,000 cycles. Panel mountable via snap-in or solder lug termination, it operates within a temperature range of -25°C to 50°C and meets UL94 V-0 flammability standards.
MountingSnap in, Panel
Quick Jump:
Technical Specifications
NKK Switches LB16CKG01-6B-JB technical specifications.
General
| Actuator Type | Round, Button |
| Contact Material | Copper |
| Contact Plating | Gold |
| Depth | 23.7mm |
| Electrical Life | 100000Cycles |
| Flammability Rating | UL94 V-0 |
| Illumination Color | White |
| Illumination Type | LED |
| Lead Free | Lead Free |
| Length | 23.7mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 50°C |
| Mechanical Life | 200000Cycles |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 28V |
| Max Voltage Rating (DC) | 28V |
| Mount | Snap in, Panel |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | LB |
| Switch Function | On-On |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
