NKK Switches
LB25CKW01-H
DPDT Illuminated Pushbutton Switch, 3A 250VAC, Momentary, Solder/Quick Connect
DPDT illuminated pushbutton switch with momentary ON-Mom function. Features a round button actuator and silver contacts with silver plating, rated for 3A at 250VAC/30VDC. Offers a mechanical life of 1,000,000 cycles and electrical life of 100,000 cycles. Panel mountable with quick connect/solder lug termination and a UL94 V-0 flammability rating. Operates within a temperature range of -25°C to 70°C.
Current Rating3A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
NKK Switches LB25CKW01-H technical specifications.
General
Actuator Type
Round, Button
Contact Material
Silver
Contact Plating
Silver
Current Rating
3A
Depth
23.7mm
Electrical Life
100000Cycles
Flammability Rating
UL94 V-0
Illumination Type
Illuminated
Lead Free
Contains Lead
Length
23.7mm
Max Current Rating
3A
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mechanical Life
1000000Cycles
Mount
Panel, Snap in
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
RoHS Compliant
Yes
Series
LB
Switch Function
On-Mom
Termination
Solder
Throw Configuration
DPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches LB25CKW01-H Datasheet
Download the complete datasheet for NKK Switches LB25CKW01-H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

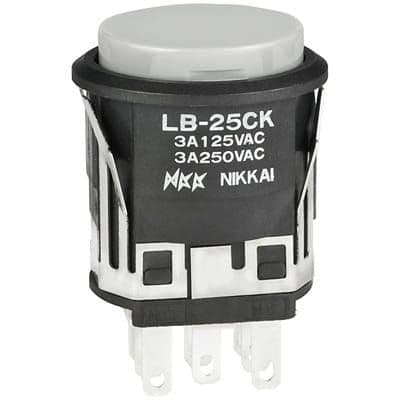

Product Images
