This square button switch features a silver contact plating and a current rating of 3A. It has a maximum operating temperature of 70°C and a minimum operating temperature of -25°C. The switch is designed for on-moment operation and has a mechanical life of 1000000 cycles. It is compliant with RoHS regulations and is available in a panel mount package.
Current Rating3A
MountingSnap in, Panel
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the NKK Switches LB25SKW01-A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
NKK Switches LB25SKW01-A technical specifications.
General
| Actuator Type | Square, Button |
| Contact Plating | Silver |
| Current Rating | 3A |
| Electrical Life | 100000Cycles |
| Flammability Rating | UL94 V-0 |
| Lead Free | Contains Lead |
| Life (Hours) | 1000000Hour |
| Max Operating Temperature | 70°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Snap in, Panel |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | LB |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches LB25SKW01-A Datasheet
Download the complete datasheet for NKK Switches LB25SKW01-A to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

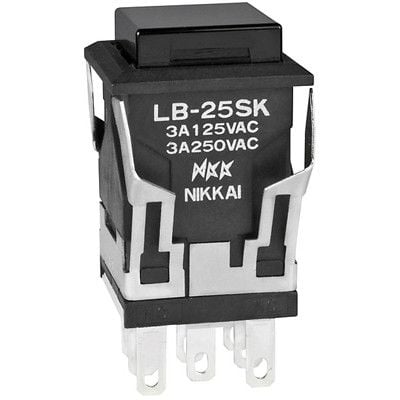

Product Images
