DPDT pushbutton switch featuring alternate ON-ON action and a round button actuator. Rated for 3A at 250VAC and 30VDC, with silver contacts and plating. Offers panel mount with snap-in capability and vertical orientation, terminating via quick connect or solder lug. Illuminated with a red neon lamp, this switch boasts an electrical life of 100,000 cycles and a mechanical life of 200,000 cycles, operating within a -25°C to 50°C temperature range.
Current Rating3A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
NKK Switches LB26CKW01-01-JC technical specifications.
General
| Actuator Type | Round, Button |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 3A |
| Depth | 23.7mm |
| Electrical Life | 100000Cycles |
| Illumination Color | Red |
| Illumination Type | Neon, Lamp |
| Lead Free | Contains Lead |
| Length | 23.7mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 200000Cycles |
| Mount | Panel, Snap in |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | LB |
| Switch Function | On-On |
| Termination | Solder |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches LB26CKW01-01-JC Datasheet
Download the complete datasheet for NKK Switches LB26CKW01-01-JC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

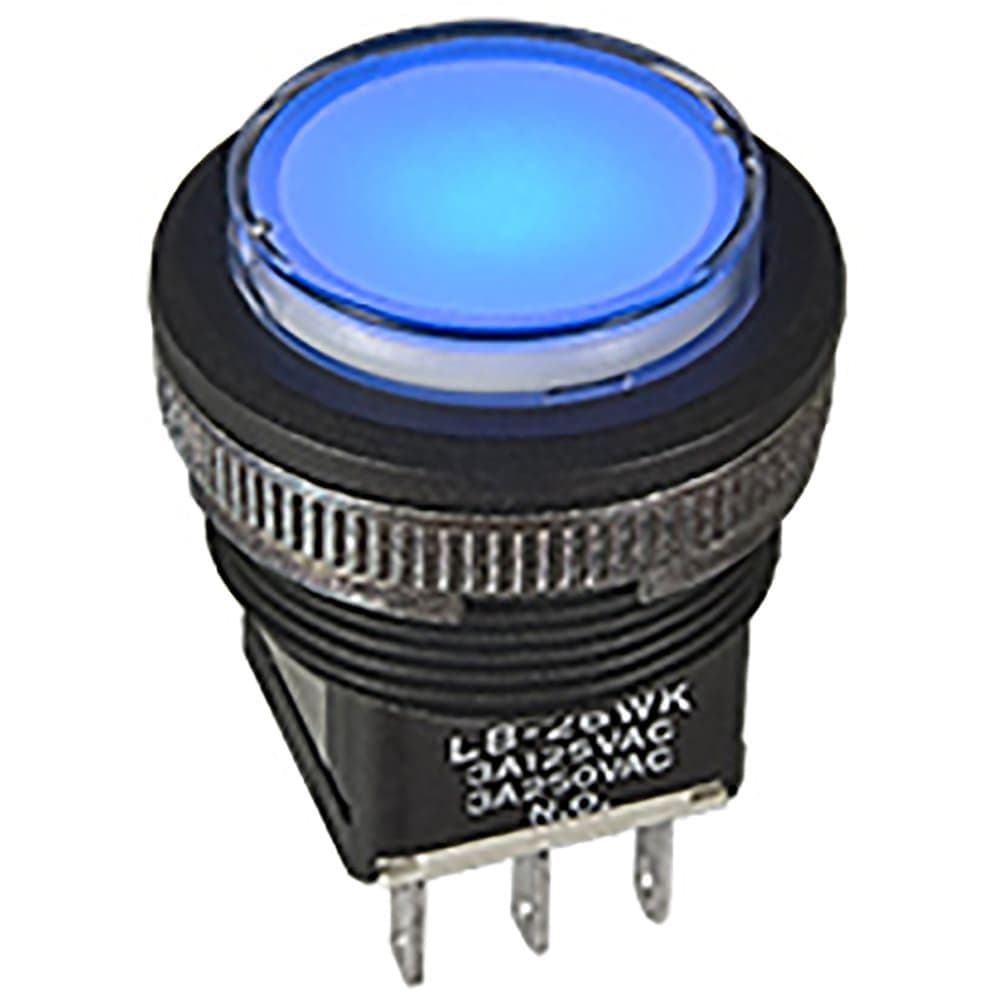

Product Images
