Technical Specifications
NKK Switches LB26SKW01-1C-C technical specifications.
General
Actuator Type
Square, Button
Contact Plating
Silver
Current Rating
3A
Electrical Life
100000Cycles
Flammability Rating
UL94 V-0
Illumination Color
Red
Illumination Type
LED
Lead Free
Contains Lead
Life (Hours)
200000Hour
Max Operating Temperature
50°C
Mechanical Life
200000Cycles
Min Operating Temperature
-25°C
Mount
Snap in, Panel
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
RoHS Compliant
Yes
Series
LB
Switch Function
On-On
Termination
Solder
Throw Configuration
DPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches LB26SKW01-1C-C Datasheet
Download the complete datasheet for NKK Switches LB26SKW01-1C-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

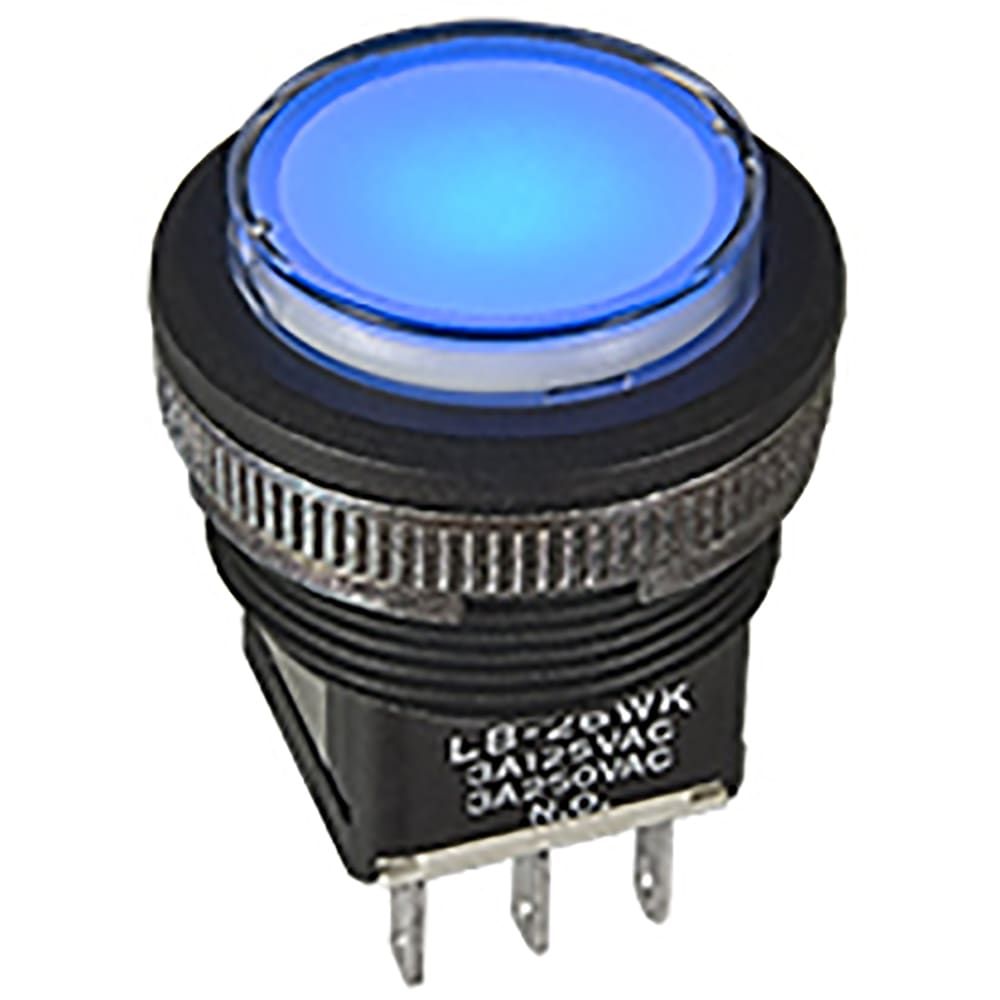

Product Images
