NKK Switches
M2012E4S1W03/UC
Switch Toggle ON None ON SPDT Small Flat Lever PC Pins 6A 250VAC 30VDC PC Mount with Threads
Current Rating4A
MountingPanel
Quick Jump:
Technical Specifications
NKK Switches M2012E4S1W03/UC technical specifications.
General
Actuator Length
21.3mm
Actuator Material
Brass, Chrome
Current Rating
4A
Electrical Life
25000Cycles
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Mount
Panel
Packaging
Bulk
Reach SVHC Compliant
No
Series
M
Switch Function
On-On
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches M2012E4S1W03/UC Datasheet
Download the complete datasheet for NKK Switches M2012E4S1W03/UC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

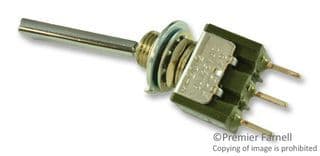

Product Images
