SPDT toggle switch featuring PC pins for PC mounting with bracket. Rated for 6A at 250VAC and 30VDC, with a 3A continuous current rating. Offers a 25,000 cycle electrical life and operates within a -30°C to +85°C temperature range. The small bat lever actuator is constructed from chrome-plated brass, and the silver contacts ensure reliable performance.
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches M2012S2A2W13 technical specifications.
General
| Actuator Length | 6.86mm |
| Actuator Material | Brass, Chrome |
| Actuator Type | Standard Round |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 3A |
| Depth | 8mm |
| Electrical Life | 25000Cycles |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 16.3mm |
| Max Current Rating | 6A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mount | Through Hole |
| Orientation | Vertical |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | M |
| Switch Function | On-On |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches M2012S2A2W13 Datasheet
Download the complete datasheet for NKK Switches M2012S2A2W13 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

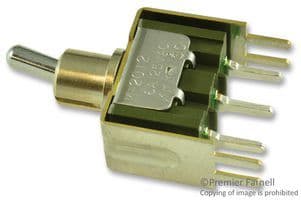

Product Images
