M2012TXW41-DA

Datasheet

Illuminated SPDT Rocker Switch, 6A, 30VDC, On-On, PC Pins

NKK Switches

M2012TXW41-DA

Name: M2012TXW41-DA NKK Switches
Brand: NKK Switches
SKU: M2012TXW41-DA

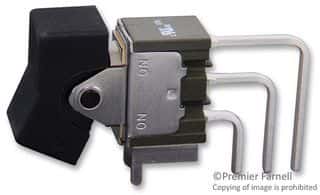

Illuminated SPDT Rocker Switch, 6A, 30VDC, On-On, PC Pins

Illuminated rocker switch featuring SPDT, On-On functionality and a latched mechanism. Rated for 6A at 30VDC, with a 125V AC rating. Constructed with silver contacts and a polyamide actuator, this through-hole, vertical mount component offers 25,000 electrical cycles and 50,000 mechanical cycles. Operating temperature range is -30°C to 85°C.

MountingThrough Hole, Vertical

Quick Jump:

Chat with Datasheet

Technical Specifications

NKK Switches M2012TXW41-DA technical specifications.

General

Actuator Material	Polyamide
Actuator Type	Concave (Standard V)
Contact Material	Silver
Contact Plating	Silver
Depth	35.49mm
Electrical Life	25000Cycles
Illumination Type	Illuminated
Lead Free	Lead Free
Length	9.27mm
Max Current Rating	6A
Max Operating Temperature	85°C
Min Operating Temperature	-30°C
Max Voltage Rating (AC)	250V
Max Voltage Rating (DC)	30V
Mechanical Life	50000Cycles
Mount	Through Hole, Vertical
Orientation	Vertical
Packaging	Tray
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	M
Switch Function	On-On
Termination	PC Pins
Throw Configuration	SPDT
Voltage Rating (AC)	125V
DC Rated Voltage	30V
