SPDT Toggle Switch with a 6A 250VAC/30VDC rating, featuring a small bat lever actuator made of brass with chrome plating. This non-illuminated, panel-mount switch offers solder lug termination and a vertical orientation. It boasts an electrical life of 25,000 cycles and operates within a temperature range of -30°C to 85°C, with a UL94 V-0 flammability rating.
MountingPanel, Bushing
Quick Jump:
Technical Specifications
NKK Switches M2018SS1W01 technical specifications.
General
Actuator Length
10.5mm
Actuator Material
Brass, Chrome
Actuator Type
Standard Round
Contact Material
Silver
Contact Plating
Silver
Depth
8mm
Electrical Life
25000Cycles
Flammability Rating
UL94 V-0
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Length
13mm
Max Current Rating
6A
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mount
Panel, Bushing
Number of Poles
1
Number of Positions
3
Orientation
Vertical
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
M
Switch Function
Mom-Off-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Width
7.9mm
Compliance
RoHS
Compliant
Datasheet
NKK Switches M2018SS1W01 Datasheet
Download the complete datasheet for NKK Switches M2018SS1W01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

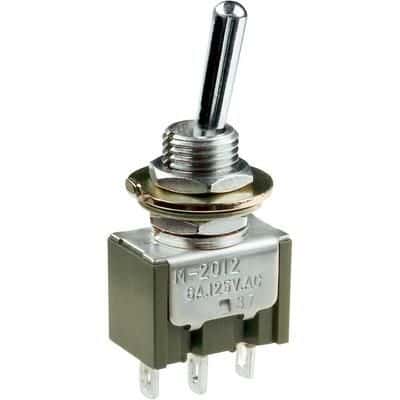

Product Images
