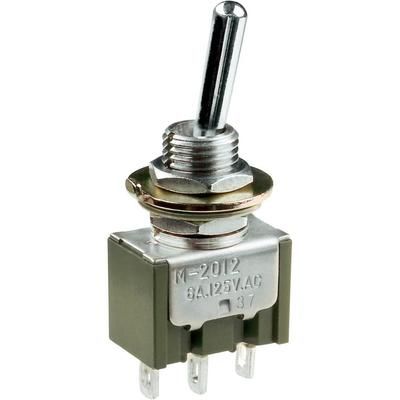

SPDT toggle switch with a small bat lever, featuring solder lug termination and a panel mount with threads. Rated for 6A at 250VAC and 30VDC, this non-illuminated switch offers a 3-position On-Off-Mom function. It boasts a 10.5mm brass, chrome-plated actuator and silver contacts, with an electrical life of 25,000 cycles. Operating temperature range is -30°C to 85°C, and the component meets UL94 V-0 flammability standards.
MountingPanel, Bushing
Quick Jump:
Technical Specifications
NKK Switches M2019SS1W01 technical specifications.
General
Actuator Length
10.5mm
Actuator Material
Brass, Chrome
Actuator Type
Standard Round
Contact Material
Silver
Contact Plating
Silver
Depth
8mm
Electrical Life
25000Cycles
Flammability Rating
UL94 V-0
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Length
13mm
Max Current Rating
6A
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mount
Panel, Bushing
Number of Poles
1
Number of Positions
3
Orientation
Vertical
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
No
Series
M
Switch Function
On-Off-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Width
7.9mm
Compliance
RoHS
Not Compliant
Datasheet
NKK Switches M2019SS1W01 Datasheet
Download the complete datasheet for NKK Switches M2019SS1W01 to view detailed technical specifications.
